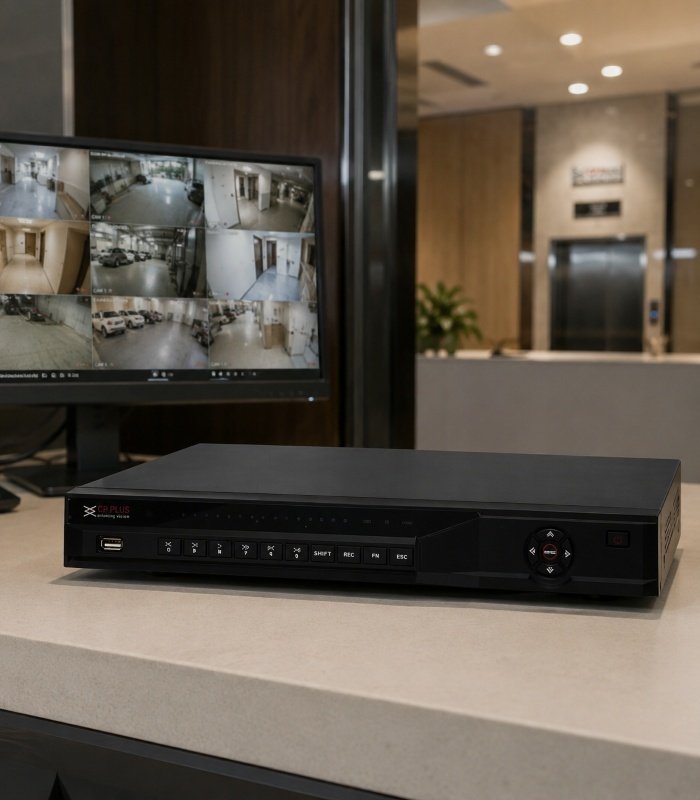

CP-UVR-1601L1N-4KI3-V2 DVR for CCTV is available at Chandra Store, a trusted electronics and CCTV dealer based in Jamalpur, Munger district, Bihar. It is a DVR (digital video recorder), part of our DVR Recorders range. We supply genuine, tested units with manufacturer warranty and support customers across Munger, Jamalpur and other cities of Bihar with fast delivery and after-sales help.
CP-UVR-1601L1N-4KI3-V2 DVR for CCTV — Full Specifications
| Processor | Industrial-Grade Processor |
|---|---|
| Operating System | Embedded Linux |
| Analog Camera Input | 16 BNC ports with HDCVI, AHD, TVI and CVBS auto-detection |
| IP Camera Input | Up to 32 IPC channels; 16 IP channels by default + 16 channels through analog-to-IP conversion |
| Network Bandwidth | 128 Mbps incoming, 128 Mbps recording and 128 Mbps outgoing bandwidth |
| AI Function Limitation | Adding IP channels beyond the existing channels disables IVS, SMD and Face AI functions |
| User Interface | Web, Local GUI |
| CVI Camera Input | 4K @ 25/30fps, 6MP @ 20fps, 5MP @ 20/25fps, 4MP @ 25/30fps, 1080p @ 25/30fps, 720p @ 25/30/50/60fps |
| TVI Camera Input | 4K @ 15fps, 5MP @ 20fps, 4MP @ 25/30fps, 3MP @ 25/30fps, 1080p @ 25/30fps, 720p @ 25/30fps |
| AHD Camera Input | 4K @ 15fps, 5MP @ 20fps, 4MP @ 25/30fps, 3MP @ 25/30fps, 1080p @ 25/30fps, 720p @ 25/30fps |
| Two-Way Talk | Supported; shares the same audio input with the first channel |
| Video Output | 1 × HDMI, 1 × VGA |
| HDMI Output Resolution | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| VGA Output Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| HDMI / VGA Output | Configurable simultaneous and heterogeneous video source output |
| Face Attributes | Gender, age group, glasses, expressions, face mask and beard |
| Video Compression | H.265+, H.265, H.264 |
| Frame Rate – Main Stream | 4K @ 1–10fps, 6MP @ 1–10fps, 5MP @ 1–12fps, 4K-N/4MP/3MP @ 1–15fps, 4M-N/1080p/720p/960H/D1/CIF @ 1–25/30fps |
| Frame Rate – Sub Stream | 960H @ 1–15fps, D1/CIF @ 1–25/30fps |
| Encoding Strategy | AI InstaStream / InstaStream |
| Stream Capability | Dual Stream |
| Face Detection Performance | 4 channels, up to 12 face images/sec per channel |
| Bit Rate | 32 kbps–6144 kbps |
| Audio Input | 1-channel RCA, 16-channel BNC (Coaxial Audio) |
| Audio Output | 1 channel, RCA |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8 kHz, 16-bit |
| Hard Disk Support | 1 × SATA port, up to 8TB capacity; maximum HDD capacity varies with ambient temperature |
| Smartphone Support | iPhone, iPad and Android phones |
| Intelligent Alarm | Face detection, face recognition and perimeter protection |
| Recording Playback | 1 / 4 / 9 / 16 channels |
| Browser Support | Chrome, Internet Explorer 9 or later, Firefox |
| Backup Method | USB Device / Network |
| Playback Functions | Instant playback, general playback, event playback, tag playback and smart playback |
| Smart Playback | Face and motion detection |
| Interface Ports | 1 × HDMI, 1 × VGA, 1 × RS485, 3 × USB ports (1 front USB 2.0, 2 rear USB 3.0) |
| Network Mode | Single-address mode |
| Ethernet | 1 × RJ-45 port, 10/100/1000 Mbps |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, ONVIF 22.12 (Profile T, Profile S, Profile G), CGI, SDK |
| Power Supply | DC 12V / 1A |
| Power Consumption | <15W (without HDD) |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 325 × 257.1 × 55.0 mm |
| Weight | 1.5 kg |
Frequently Asked Questions (FAQs)
What is the CP-UVR-1601L1N-4KI3-V2 DVR for CCTV?
It is a DVR (digital video recorder) sold by Chandra Store, suited for home, office and business use.
How many camera channels does the CP-UVR-1601L1N-4KI3-V2 DVR for CCTV support?
Channel capacity depends on the model — contact us for exact specifications.
Does the CP-UVR-1601L1N-4KI3-V2 DVR for CCTV come with a warranty?
Yes, it comes with manufacturer warranty and after-sales support from Chandra Store.
Is the CP-UVR-1601L1N-4KI3-V2 DVR for CCTV available in Munger and other cities of Bihar?
Yes, Chandra Store delivers the CP-UVR-1601L1N-4KI3-V2 DVR for CCTV to Munger, Jamalpur and other cities and districts across Bihar, with in-store pickup also available.
Where can I buy the CP-UVR-1601L1N-4KI3-V2 DVR for CCTV at the best price?
You can buy it directly from Chandra Store in Jamalpur, Munger, either in-store or online, with genuine products and competitive pricing. For more background, see the manufacturer’s official website on the brand.
Where can I buy the CP-UVR-1601L1N-4KI3-V2 DVR for CCTV in Munger and other cities of Bihar?
You can buy the CP-UVR-1601L1N-4KI3-V2 DVR for CCTV directly from Chandra Store in Jamalpur, Munger — browse our full DVR Recorders range online, or visit our store for a hands-on demo and installation support.
