2.4MP IR Bullet Camera (CP-URC-TC24PL3) is available at Chandra Store, a trusted electronics and CCTV dealer based in Jamalpur, Munger district, Bihar, part of our Bullet Cameras range.
Description:
Within 48 hours Installation Available
Free Delivery on Complete Camera Sets
1-Year Onsite Service Support
1-Year Product Warranty
10-Day Replacement Guarantee
Easy Return & Replacement Policy
We also offer a wide range of CCTV cameras including:
Bullet Camera and Dome Cameras
Night Vision & Wireless Models
DVR/NVR Solutions
Ensure your property is secure with trusted professionals.
📞 Call us today for a free quote and consultation.

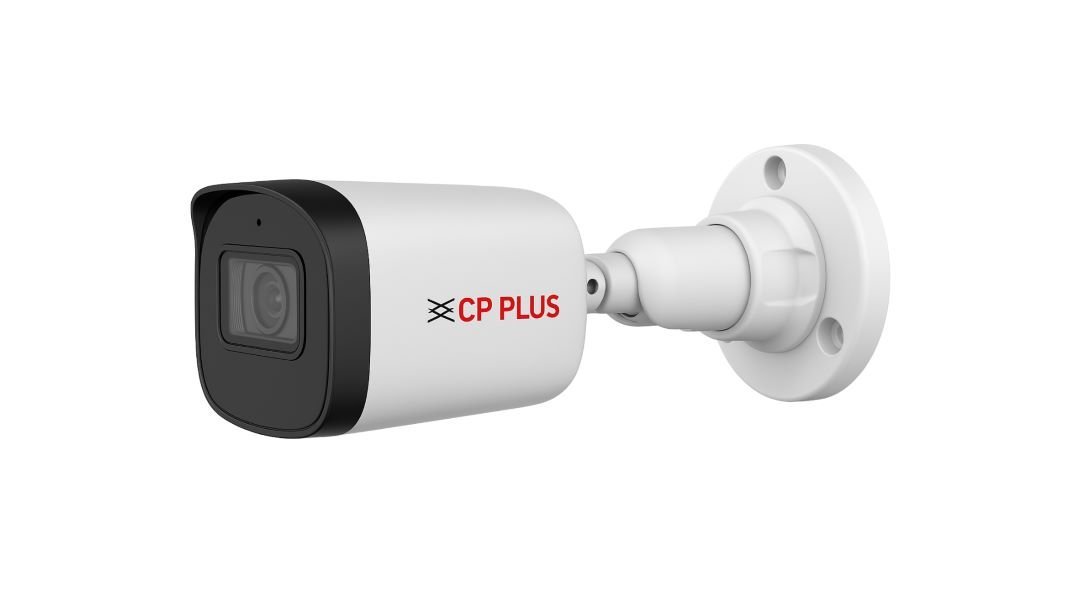

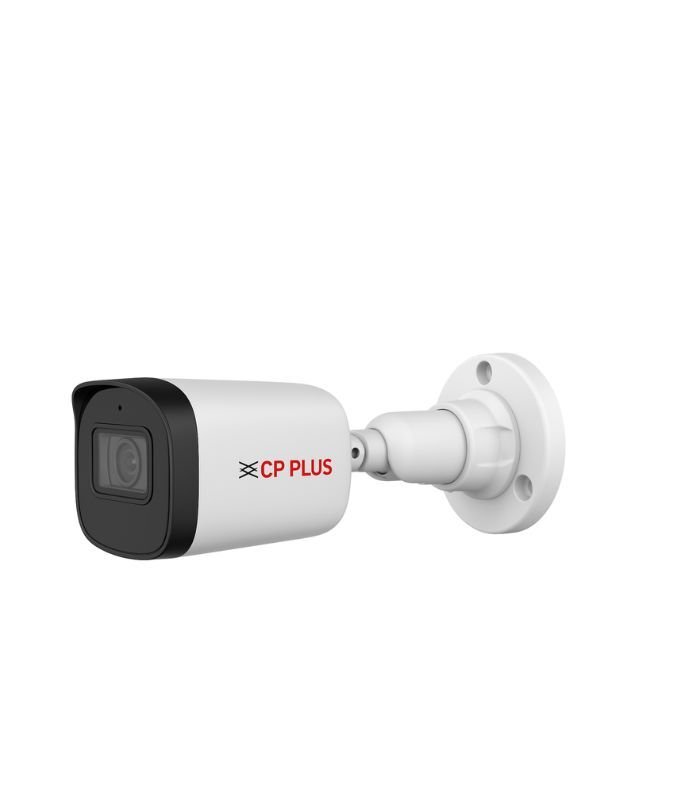

2.4MP IR Bullet Camera (CP-URC-TC24PL3) — Full Specifications
| Specification | Details |
|---|---|
| Image Sensor | 2.4MP PS CMOS Image Sensor |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Minimum Illumination | 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Shutter Speed | PAL: 1/25 s–1/100,000 s ; NTSC: 1/30 s–1/100,000 s |
| Lens | 3.6 mm (2.8 mm and 6 mm optional) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Max. Aperture | F2.0 |
| Angle of View | 3.6 mm: H: 80°, V: 43°, D: 94° 2.8 mm: H: 100°, V: 54°, D: 117° 6 mm: H: 43°, V: 24° |
| Close Focus Distance | 3.6 mm: 0.8 m ; 2.8 mm: 0.5 m ; 6 mm: 2.4 m |
| DORI Distance | 3.6 mm: 55.0 m (Detect), 22.0 m (Observe), 11.0 m (Recognize), 5.5 m (Identify) 2.8 mm: 44.7 m (Detect), 17.9 m (Observe), 8.9 m (Recognize), 4.5 m (Identify) 6 mm: 102.9 m (Detect), 41.1 m (Observe), 20.6 m (Recognize), 10.3 m (Identify) |
| Back Light Compensation | BLC / DWDR |
| Iris Control | Fixed |
| White Balance | Auto |
| Video Output | CVI/TVI/AHD/CVBS via one BNC port |
| Noise Reduction | 2D DNR |
| Gain Control (AGC) | Auto |
| Day/Night | Auto (ICR) / Color / B/W |
| Resolution | 1080p (1920 × 1080), 960H (960 × 576 / 960 × 480) |
| Frame Rate | CVI: PAL: 1080p@25 fps ; NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps ; NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps ; NTSC: 1080p@30 fps CVBS: PAL: 960H ; NTSC: 960H |
| IR Mode | Smart IR |
| IR | IR Range of 30 m |
| IR Control | Auto |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Storage Humidity | <95% RH, non-condensing |
| Power Source | 12V DC ±30% |
| Power Consumption | Max. 2.8 W (12 VDC, IR on) |
| Dimension | 146.1 mm × 70.0 mm × 69.8 mm |
| Weight | 0.15 kg |
About This Item
- 2.4MP IR BULLET SECURITY CAMERA – 2.4MP CMOS sensor delivers crisp Full HD (1920×1080) at 25/30fps through a 3.6mm fixed lens (2.8mm & 6mm optional) — flexible coverage for any outdoor CCTV installation angle.
- 30-METER SMART IR NIGHT VISION – Infrared LEDs with Smart IR auto-adjustment provide powerful 30-meter night vision without overexposure, ensuring consistently clear footage in complete darkness.
- IP67 WEATHERPROOF CONSTRUCTION – Premium IP67-rated bullet housing provides complete protection against dust and water ingress — built to last through harsh Indian weather for uninterrupted outdoor security.
- OSD MENU CONTROL OVER COAXIAL CABLE – Convenient on-screen display (OSD) menu allows full camera configuration through the coaxial cable itself — eliminating the need for on-site manual adjustments after installation.
- 4-IN-1 SWITCHABLE SIGNAL OUTPUT (CVI/CVBS/AHD/TVI) – Single BNC port supports all four major analog video formats, making this one of the most compatible wired CCTV cameras for existing surveillance systems.
- DWDR + 2D DNR + AWB + AGC + BLC + ICR – Full image processing stack delivers sharp, balanced video from bright daylight to near-total darkness — ideal for outdoor perimeters, driveways, and entry points.
Frequently Asked Questions (FAQs)
1. What resolution does this camera provide?
The camera delivers 2.4MP Full HD (1920×1080) video for clear and detailed surveillance footage.
2. How far can the camera see at night?
Its 30-meter Smart IR night vision provides clear visibility in complete darkness while preventing image overexposure.
3. Is this camera suitable for outdoor installation?
Yes, the IP67 weatherproof housing protects against dust, rain, and harsh weather conditions for reliable outdoor use.
4. Can I adjust camera settings remotely?
Yes, the camera supports OSD menu control over the coaxial cable, allowing convenient configuration through a compatible DVR.
5. Which DVR formats are compatible with this camera?
The camera supports CVI, CVBS, AHD, and TVI formats, making it compatible with most existing surveillance systems.
6. What lens options are available?
The camera comes with a 3.6mm fixed lens, with 2.8mm and 6mm lens options available for different surveillance requirements.
7. Is this camera suitable for installations across Bihar?
Yes, it is ideal for homes, offices, shops, warehouses, and commercial properties across Patna, Tirhut, Magadh, Munger, Bhagalpur, Purnea, Kosi, Saran, and Darbhanga Divisions.
8. Where is this camera best installed?
This camera is perfect for driveways, building entrances, boundary walls, parking areas, warehouses, and outdoor perimeters, where long-range monitoring and reliable night vision are essential.
Where can I buy the 2.4MP IR Bullet Camera (CP-URC-TC24PL3) in Munger and other cities of Bihar?
You can buy the 2.4MP IR Bullet Camera (CP-URC-TC24PL3) directly from Chandra Store in Jamalpur, Munger — browse our full Bullet Cameras range online, or visit our store for a hands-on demo and installation support. For more background, see the manufacturer’s official website on the brand.
