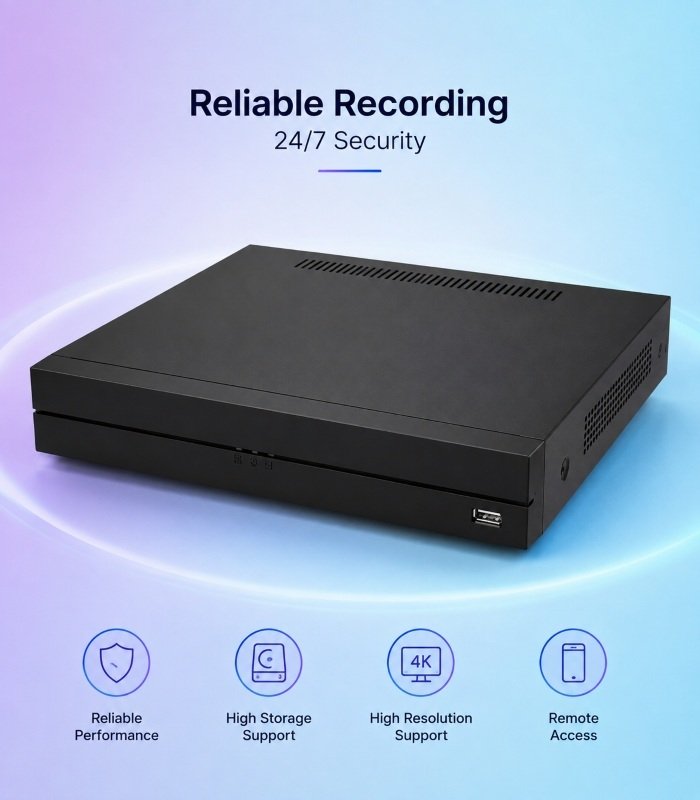

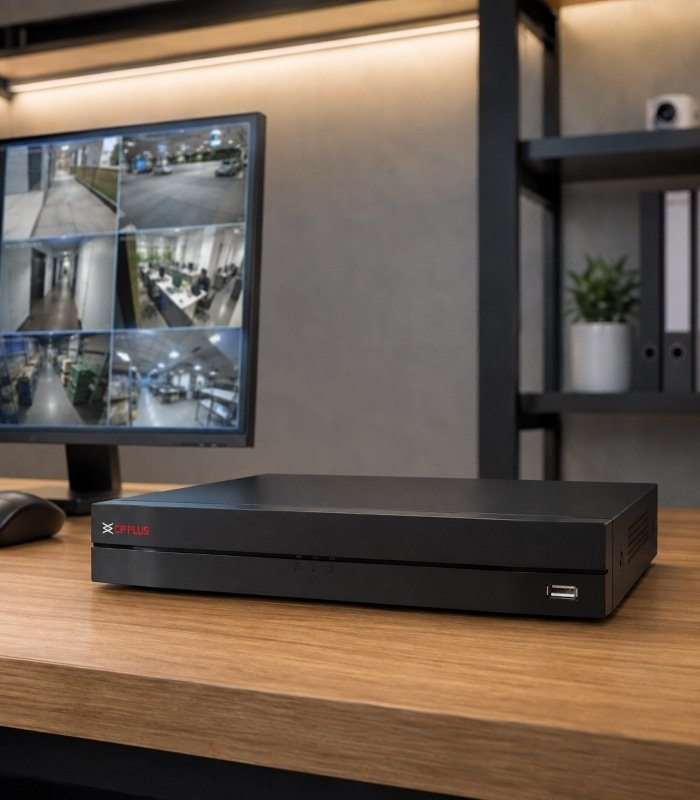

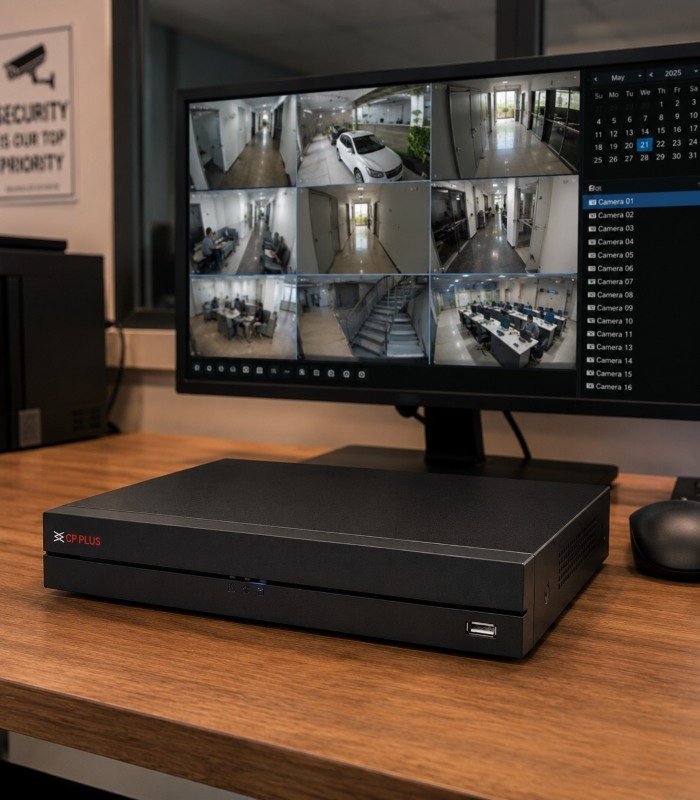

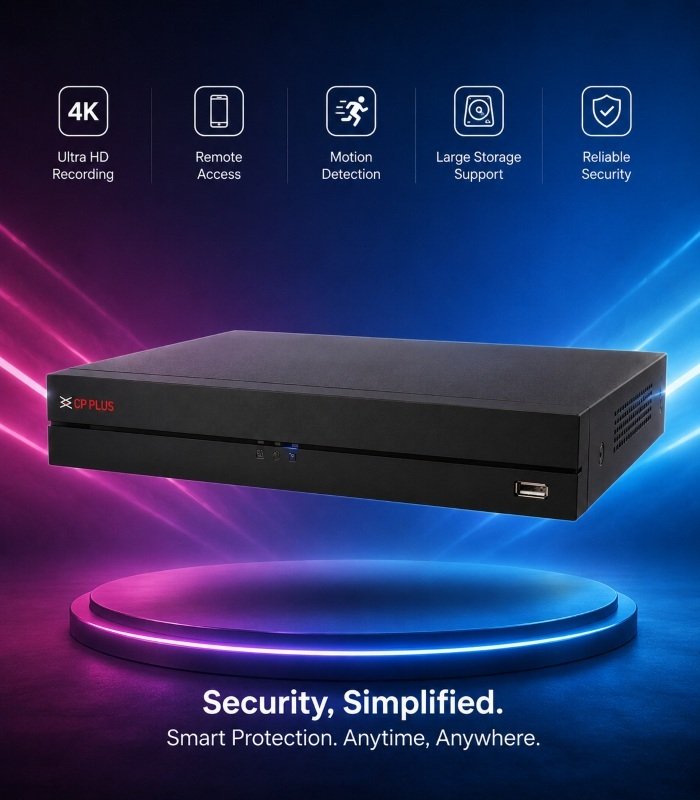

CP-UVR-0401L1-4KI2 DVR for CCTV

₹6,500.00

& Free Shipping

Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth.
Up to 2 channels video stream (analog channel) Perimeter Protection.
Instastream/H.265+ dual-stream video compression
Up to 2 channels video stream (analog channel) SMD Plus.
Support 1 SATA HDDs up to 10TB, 2 USB Ports
Up to 2 channels video stream (analog channel) human face recognition.
1 HDMI / 1 VGA simultaneous video output
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro

Out of stock

SKU: PDT_91172 Categories: DVR Recorders, Shop Tag: dvr Brand: CP Plus

Guaranteed Safe Checkout

Description
Reviews (0)

Processor	Embedded Processor
Operating System	Embedded Linux
IP Camera Input	4 + 4 channels, with each channel supporting up to 8MP
Two-Way Talk	Audio input/output reuse, RCA
User Interface	GUI
Video Output	1 × HDMI, 1 × VGA
Video Resolution – HDMI	3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Video Resolution – VGA	1920 × 1080, 1280 × 1024, 1280 × 720
Video Recording – Main Stream	4K @ 1–10fps, 6MP @ 1–10fps, 5MP @ 1–12fps, 4K-N, 4MP/3MP @ 1–15fps, 4M-N/1080P/720P/960H/D1/CIF @ 1–25/30fps
Video Recording – Sub Stream	960H @ 1–15fps, D1/CIF @ 1–25/30fps
Supported Resolutions	4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Video Compression	AI Coding, H.265+, H.265, H.264+, H.264
Video Display Split	4 / 5 / 6
Video Channel	4 channels, BNC
Audio Compression	G.711A, G.711U, PCM
Audio Output	1 channel, RCA
Audio Input	1 channel, RCA
Motion Detection	396 MD zones (22 × 18)
Video Loss Detection	Supported
Smartphone Support	iPhone, iPad and Android phones
Face Recognition	Processes up to 8 face pictures/sec across 2 video channels; supports analog cameras only
Stranger Mode	Detects faces not present in the device database with manually adjustable similarity threshold
Hard Disk	1 × SATA port, supports up to 10TB capacity
Face Database Management	Up to 10 face databases with 10,000 face images in total
Face Database Information	Name, gender, birthday, address, certificate type, certificate number, country/region and state
Bit Rate	32 Kbps–6144 Kbps per channel
Trigger Events	Recording, PTZ, tour, video push, email, FTP, snapshot, buzzer and screen tips
Database Application	Each database can be independently applied to video channels
Recording Mode	Manual, Schedule, General, Continuous, Motion Detection, Video Loss, Tampering, Alarm and Stop
Search Mode	Time/Date, Alarm, Motion Detection and Exact Search accurate to the second
Backup Mode	USB Device / Network
Playback Functions	Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next/Previous File, Next/Previous Camera, Full Screen, Repeat, Shuffle, Backup, Selection and Digital Zoom
Maximum User Accounts	128 users
Record Interval	1–60 minutes (default: 60 minutes)
Pre-Record	1–30 seconds
Post-Record	10–300 seconds
Ethernet	1 × RJ-45 port, 1000Mbps
Interface Ports	2 × USB 2.0, 1 × RS485
Network Protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant
Power Supply	DC 12V / 2A
Power Consumption	<10W (without HDD)
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Operating Humidity	0–90% RH
Dimensions (W × D × H)	260 × 238 × 48 mm
Weight	1.1 kg (without HDD)
