Description:
Within 48 hours Installation Available
Free Delivery on Complete Camera Sets
1-Year Onsite Service Support
1-Year Product Warranty
10-Day Replacement Guarantee
Easy Return & Replacement Policy
We also offer a wide range of CCTV cameras including:
Bullet Camera and Dome Cameras
Night Vision & Wireless Models
DVR/NVR Solutions
Ensure your property is secure with trusted professionals.
📞 Call us today for a free quote and consultation.
| Specification | Details |
|---|---|
| Image Sensor | 1/2.7” 5MP PS CMOS Image Sensor (0.9407 cm) |
| Minimum Illumination | 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Shutter Speed | PAL: 1/25~1/100000s ; NTSC: 1/30~1/100000s |
| White Balance | Auto, Area White Balance |
| Gain Control (AGC) | Auto |
| DORI Distance | 3.6 mm: Detect 76.0 m, Observe 30.4 m, Recognize 15.2 m, Identify 7.6 m 2.8 mm: Detect 66.0 m, Observe 26.4 m, Recognize 13.2 m, Identify 6.6 m 6 mm: Detect 120.0 m, Observe 48.0 m, Recognize 24.0 m, Identify 12.0 m |
| Lens Type | Fixed-focal |
| Max. Aperture | F2.0 |
| Lens Mount | M12 |
| Close Focus Distance | 3.6 mm: 1.3 m ; 2.8 mm: 1.0 m ; 6 mm: 2.8 m |
| Lens | 3.6 mm, 6 mm (2.8 mm optional) |
| Back Light Compensation | BLC / HLC / DWDR |
| Angle Adjustment | Pan: 0°–360° ; Tilt: 0°–90° ; Rotation: 0°–360° |
| Angle of View | 2.8 mm: H: 106°, V: 56°, D: 125° 3.6 mm: H: 92°, V: 48°, D: 109° 6 mm: H: 54°, V: 29°, D: 62° |
| S/N Ratio | >65 dB |
| Resolution | 5M (2880 × 1620), 4M (2560 × 1440), 2MP (1920 × 1080), 960H (960 × 576 / 960 × 480) |
| Video Output | CVI/TVI/AHD/CVBS via one BNC port |
| Video Streaming | CVI: PAL: 5M@25 fps, 4M@25 fps, 2M@25 fps ; NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps ; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps ; NTSC: 4M@30 fps CVBS: PAL: 960H ; NTSC: 960H |
| Noise Reduction | 2D NR |
| Privacy Mask | Off/On (8 areas, rectangle) |
| Day/Night | Auto (ICR) / Color / B/W |
| Mirror Function | Support |
| IR | IR Range of 30 m |
| IR Control | Auto / Manual |
| Warm Light Range | 20 m |
| IR Mode | Smart IR & WL, WL Mode, IR Mode |
| Dual LED Number | 2 (Warm light) + 2 (IR light) |
| Iris Control | Fixed |
| Anti-corrosion Level | Basic Protection |
| Audio | Built-in Mic |
| Weatherproof Standard | IP67 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% RH, non-condensing |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 4.0 W (12V DC, WLED on) |
| Casing | Plastic |
| Dimension | 146.1 mm × 70.0 mm × 69.8 mm |
| Weight | 0.17 kg |
About This Item

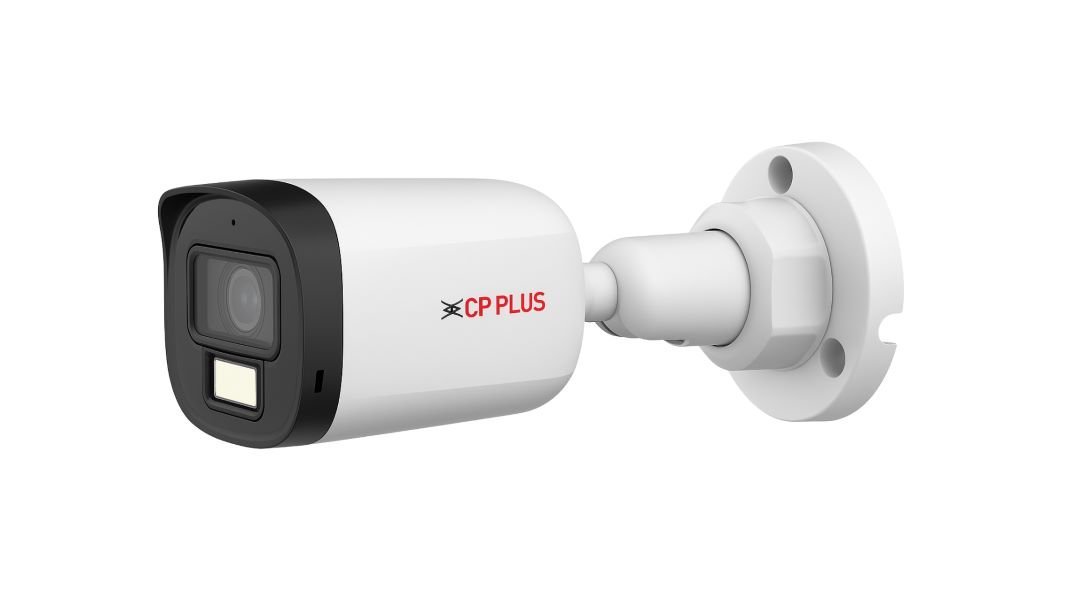

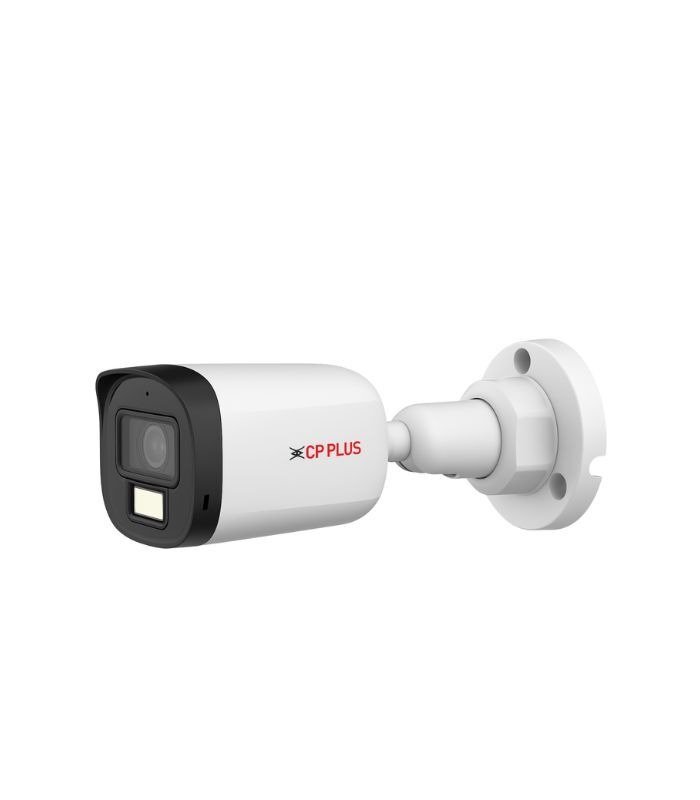

- 5MP ULTRA HD DUAL LIGHT BULLET CAMERA – 1/2.7″ 5MP CMOS sensor (0.94cm) captures 2880×1620 resolution at 25/30fps through a 6mm fixed lens — forensic-grade detail for long-range outdoor CCTV surveillance.
- 50-METER EXTENDED ILLUMINATION RANGE – Powerful 50M IR range plus 20M warm light coverage ensures detailed, vivid footage across large outdoor areas including parking lots, warehouses, and industrial perimeters.
- BUILT-IN MICROPHONE FOR AUDIO EVIDENCE – Integrated mic captures synchronized audio alongside 5MP video — providing complete, court-grade audio-visual records for high-security zones and access control points.
- IP67 HEAVY-DUTY WEATHERPROOF BODY – IP67-certified bullet housing withstands dust, water, and temperature extremes, delivering dependable long-term performance in demanding outdoor surveillance environments.
- 5MP MULTI-FORMAT OUTPUT (CVI/CVBS/AHD/TVI) – Multi-resolution streaming (5MP/4M/1080P/960H) with 4-in-1 signal support over one BNC cable ensures maximum compatibility with any DVR security camera system.
- DWDR + 2D NR + AWB + AGC + BLC + HLC – Complete image enhancement suite provides precise exposure control, superior noise reduction, and color accuracy across all lighting and weather conditions.
Frequently Asked Questions (FAQs)
1. What resolution does this camera offer?
The camera records in 5MP Ultra HD (2880×1620) resolution, providing exceptionally sharp and detailed surveillance footage.
2. How effective is the night vision?
It features 50-meter IR night vision and 20-meter warm light coverage, ensuring clear visibility and enhanced color details after dark.
3. Does the camera support audio recording?
Yes, the camera includes a built-in microphone that captures synchronized audio along with video footage.
4. Is this camera suitable for outdoor environments?
Yes, the IP67-rated weatherproof housing protects against dust, water, and extreme weather conditions.
5. Which DVR systems are compatible with this camera?
The camera supports CVI, CVBS, AHD, and TVI formats, making it compatible with most analog and hybrid DVR systems.
6. How does the camera maintain image quality in challenging conditions?
Features such as DWDR, 2D NR, AWB, AGC, BLC, and HLC help improve exposure balance, reduce noise, and enhance color accuracy.
7. Is this camera suitable for installations across Bihar?
Yes, it is ideal for homes, offices, warehouses, industrial sites, and commercial properties across Patna, Tirhut, Magadh, Munger, Bhagalpur, Purnea, Kosi, Saran, and Darbhanga Divisions.
8. What applications is this camera best suited for?
Its 5MP Ultra HD resolution, long-range illumination, and built-in microphone make it ideal for monitoring parking lots, warehouses, factory premises, commercial complexes, gated communities, and large outdoor perimeters.
