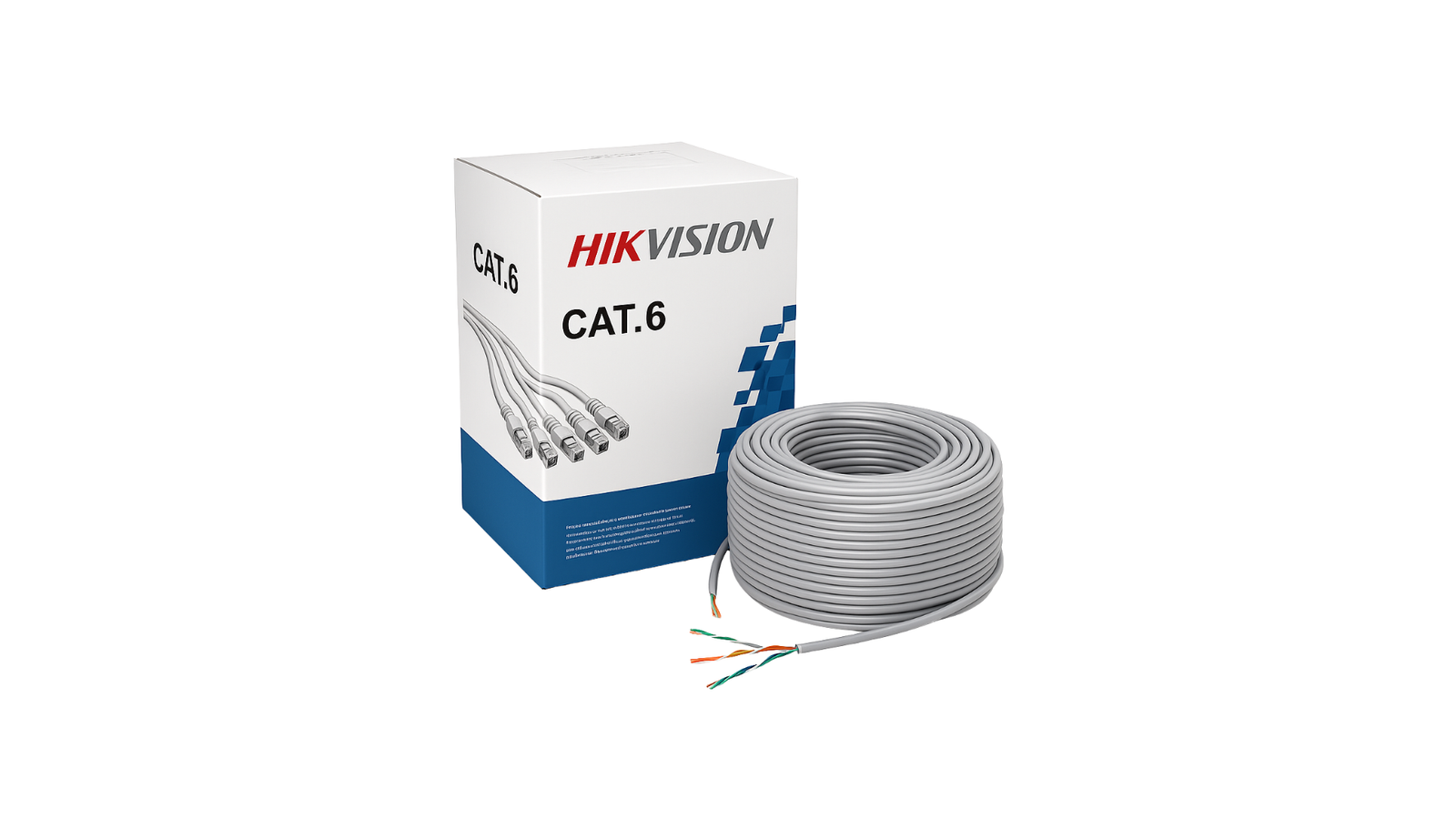

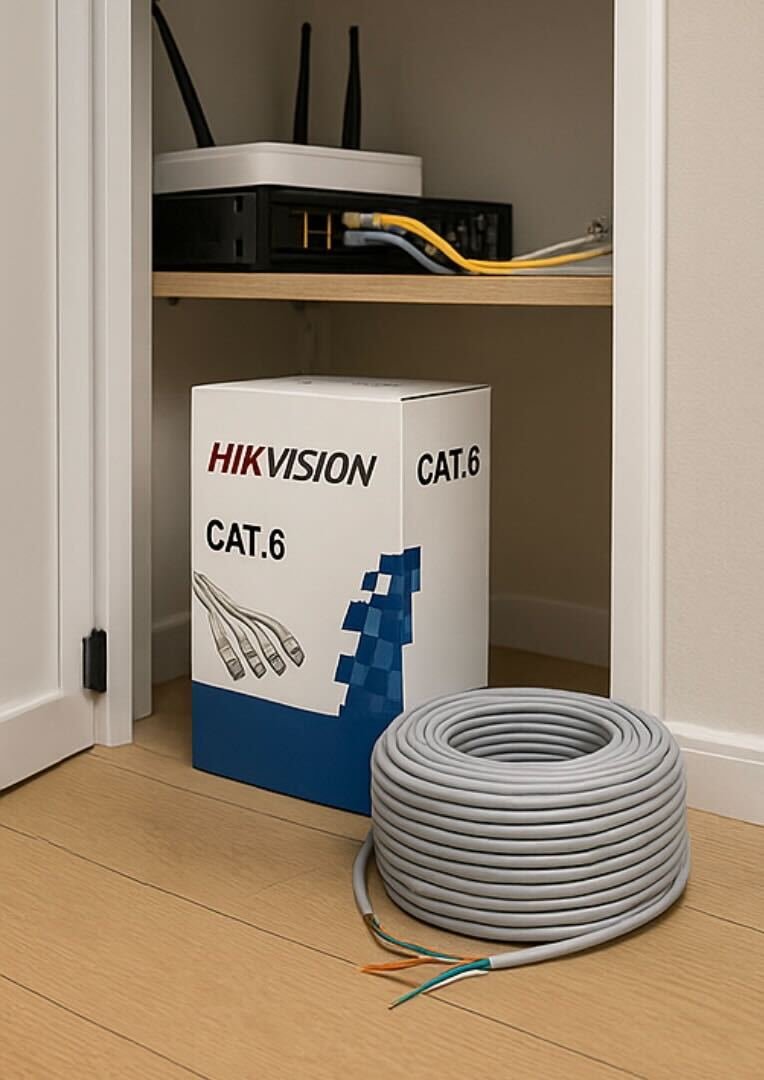

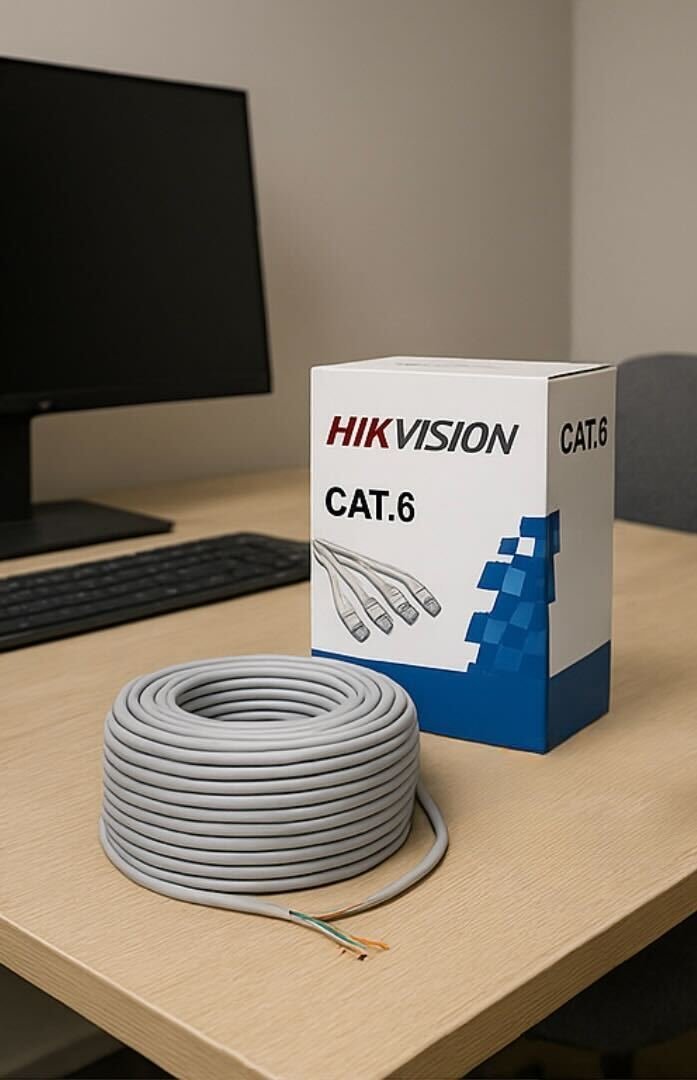

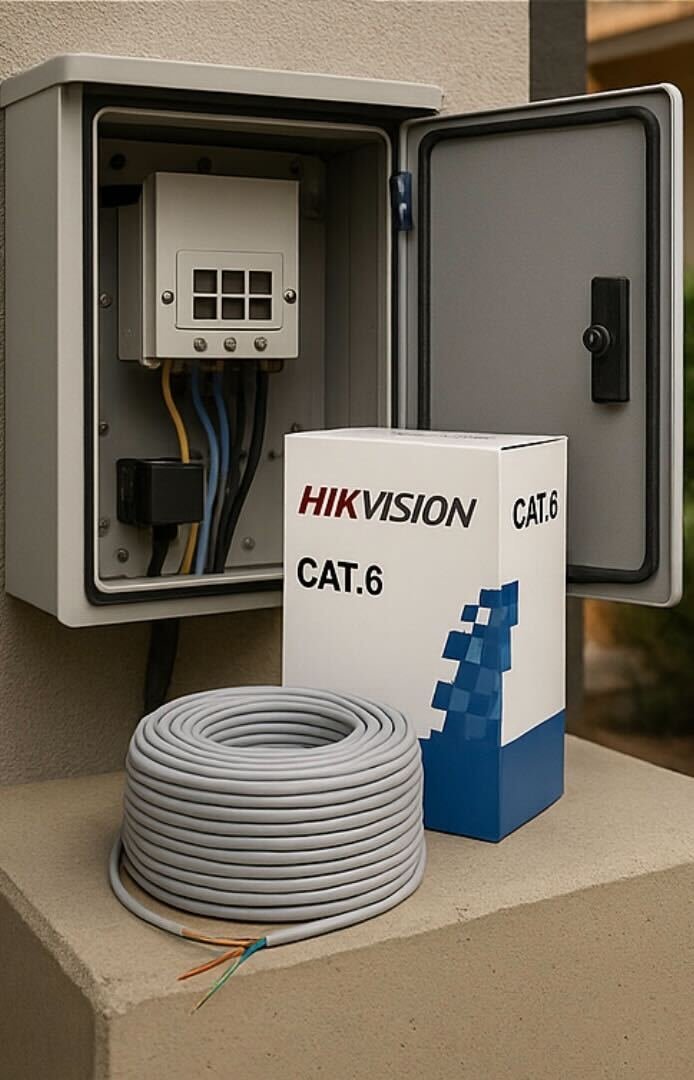

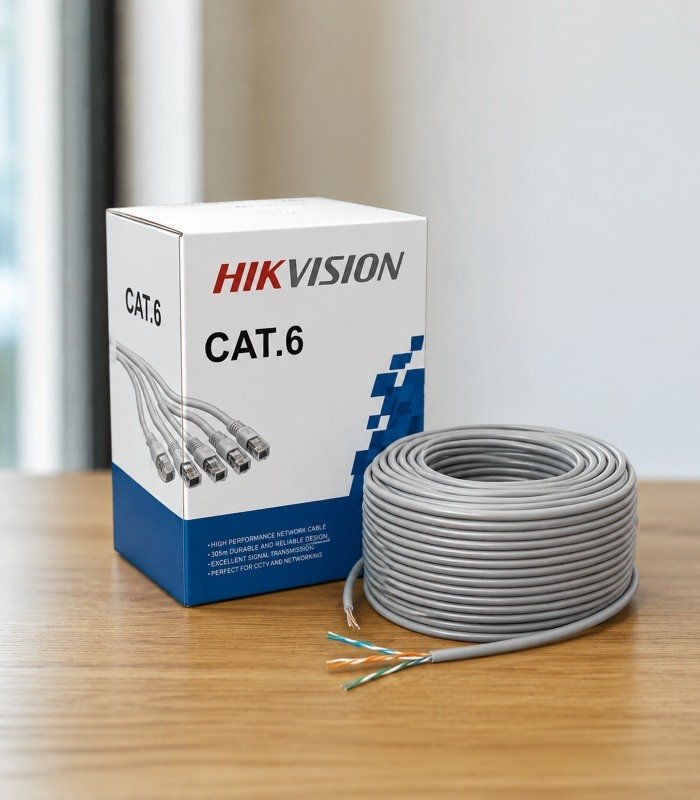

Hikvision DS-1LN6-UE-B–305 m

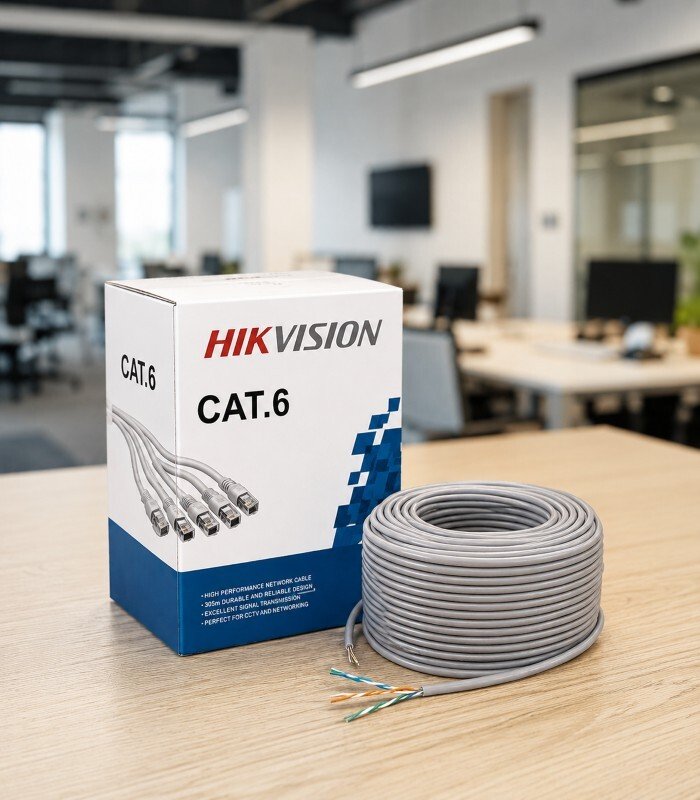

Hikvision DS-1LN6-UE-B–305 m - Image 2

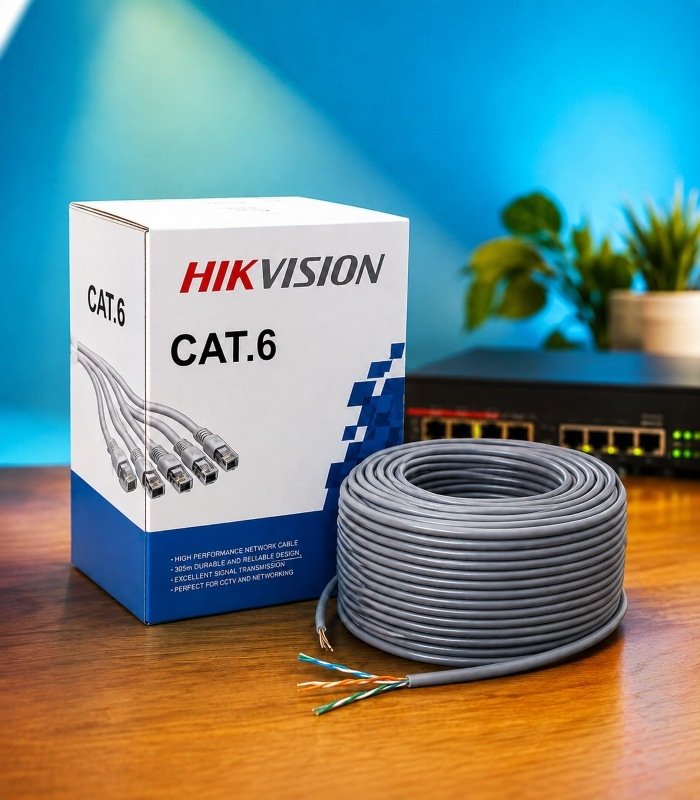

Hikvision DS-1LN6-UE-B–305 m - Image 3

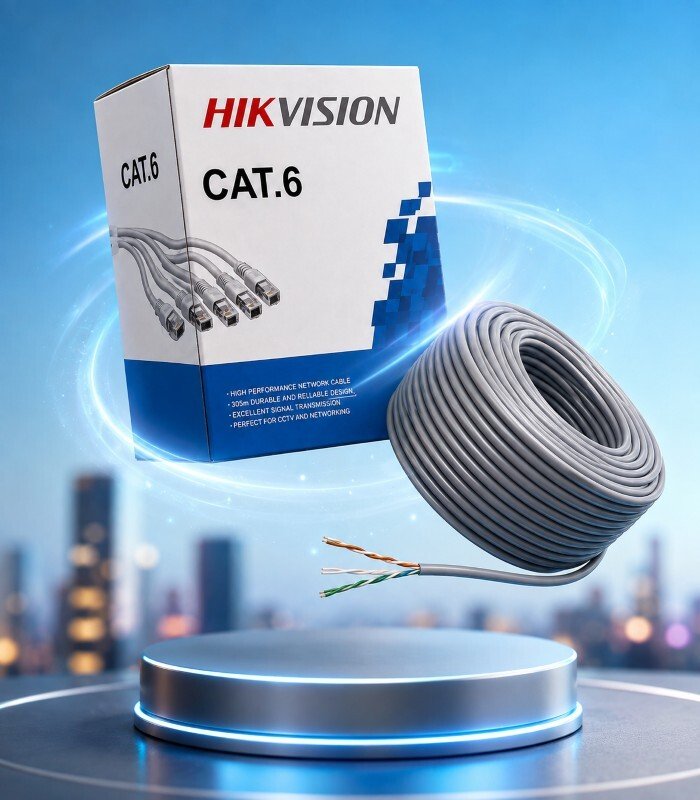

Hikvision DS-1LN6-UE-B–305 m - Image 4
,

Hikvision DS-1LN6-UE-B–305 m

Original price was: ₹9,800.00.Current price is: ₹7,700.00.

& Free Shipping
  • 305 m full-diameter Cat6 UTP cable with 23 AWG solid copper conductors
  • Core diameter: 0.53 mm for optimal signal transmission
  • Quality verified by Fluke testing for guaranteed PoE performance
  • CM-rated PVC jacket for indoor installations with flame resistance
  • Ideal for Gigabit Ethernet, PoE devices, IP cameras, and network backbones
- +
SKU: PDT_47794 Categories: , Tag: Brand:
Guaranteed Safe Checkout
Compare
SpecificationDetails
BrandHikvision
Model Name/No.DS-1LN6-UE-B
Cable TypeUnshielded Twisted Pair (UTP), Solid Conductor
Category RatingCat6 (ISO/IEC 11801 Class E, ANSI/TIA-568-C.2)
Length305 m ±1.5 m (full pull-out box)
Conductor MaterialSolid bare copper (99.95%) 23 AWG, 0.53 mm core diameter
Insulation MaterialHigh-density polyethylene (HDPE)
Jacket MaterialPVC, CM rated (fire-retardant)
Sheath PrintingHIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2
Frequency RatingUp to 250 MHz
Max Data Rate1 Gbps (1000BASE-T)
PoE PerformanceVerified long-distance PoE transmission
Fluke TestedYes
Operating Temperature–20 °C to +60 °C
Storage Temperature–20 °C to +75 °C
Operating Humidity10% to 90% RH (non-condensing)
PackagingEasy-pull dispenser box with meter markings
Country of OriginChina
Warranty1 Year Manufacturer Warranty
