| Specification | Details |
| Brand | Digisol |
| Model Name/No. | DGC-RJ1UC6-3 |
| Plug Type | RJ45 Modular Plug for UTP Cable |
| Category Rating | Category 6 (Cat6) |
| Conductor Compatibility | Solid or Stranded UTP Cables (22–26 AWG) |
| Prong Design | 3-Prong |
| Housing Material | Polycarbonate, UL94V-0 flame retardant |
| Contact Material | Copper alloy with gold-flash 3 µ″ plating |
| Current Rating | 250 V AC @ 2 A |
| Insulation Resistance | > 500 MΩ @ 1000 V DC |
| Contact Resistance | < 20 MΩ |
| Dielectric Withstanding | 1000 V DC/min (≤ 0.5 mA) |
| Tensile Strength | ≥ 20 lbs (89 N) |
| Durability | ≥ 750 mating cycles |
| Operating Temperature | –40 °C to +125 °C |
| Dimensions (approx.) | Standard RJ45 plug dimensions |
| Pack Quantity | 3 plugs per pack |
| Country of Origin | India |
| Warranty | 1 Year Manufacturer Warranty |
Networking Products

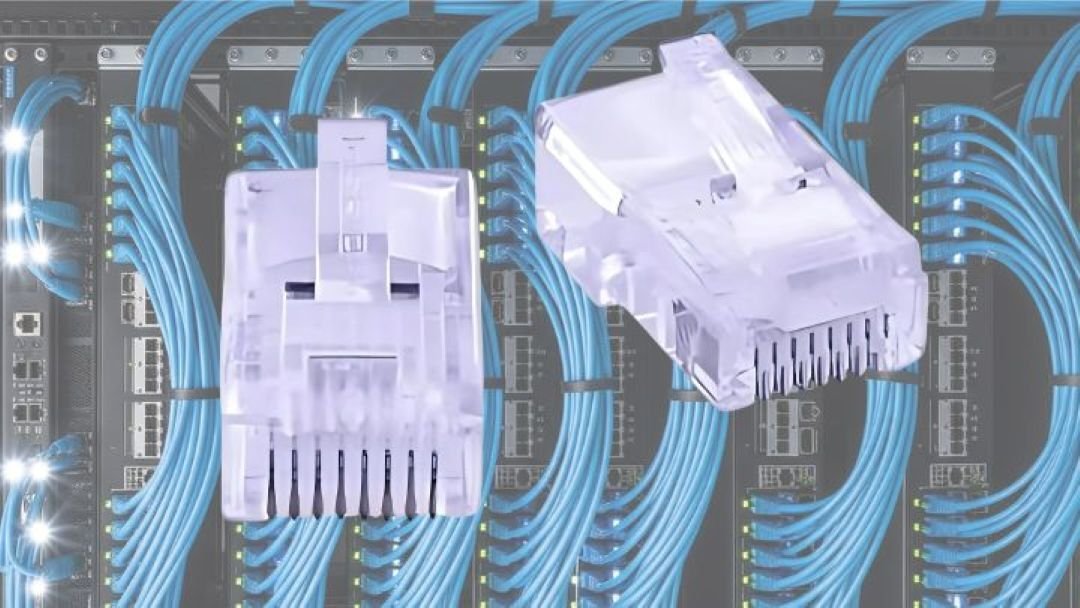

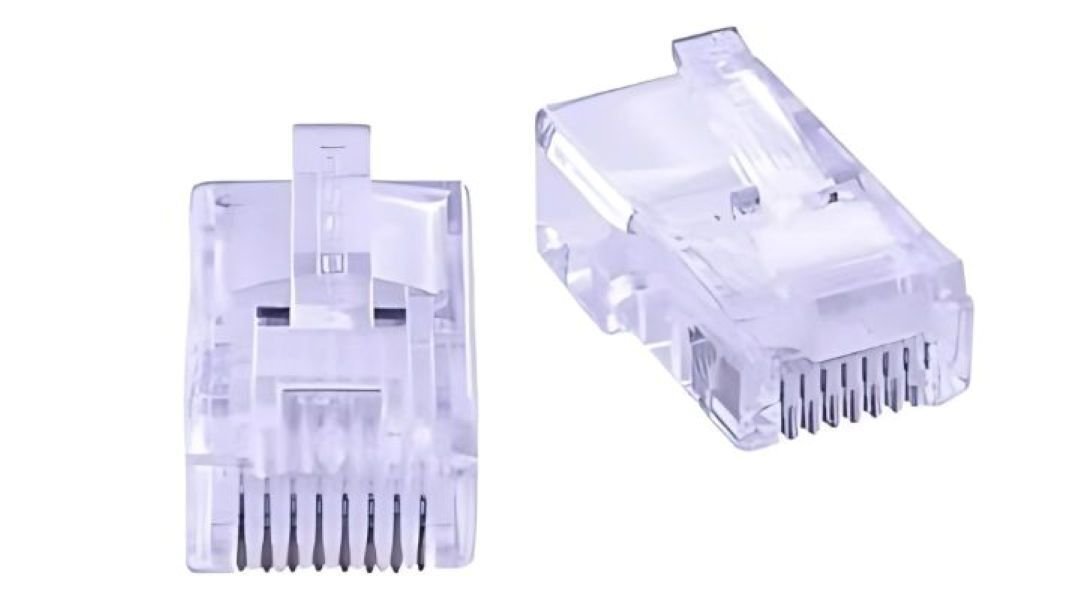

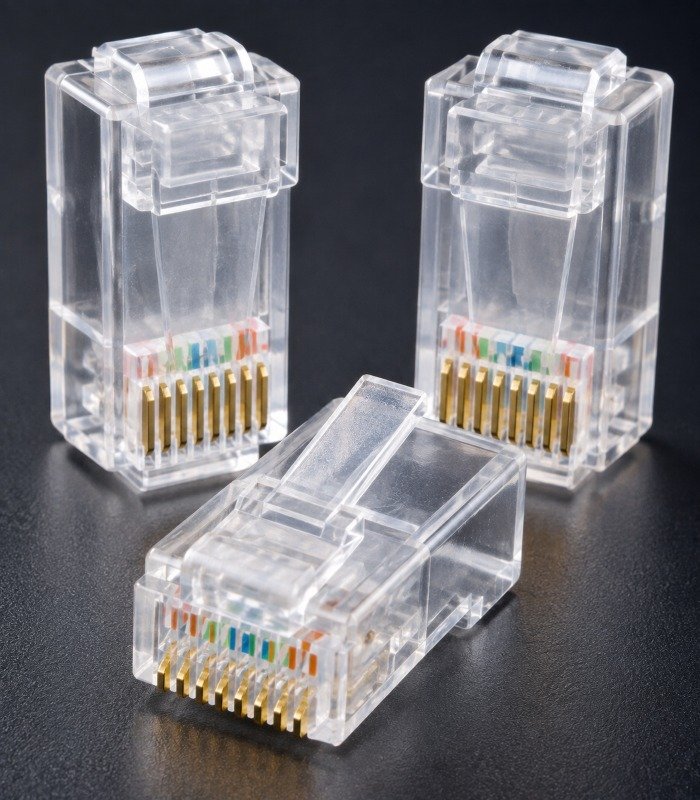

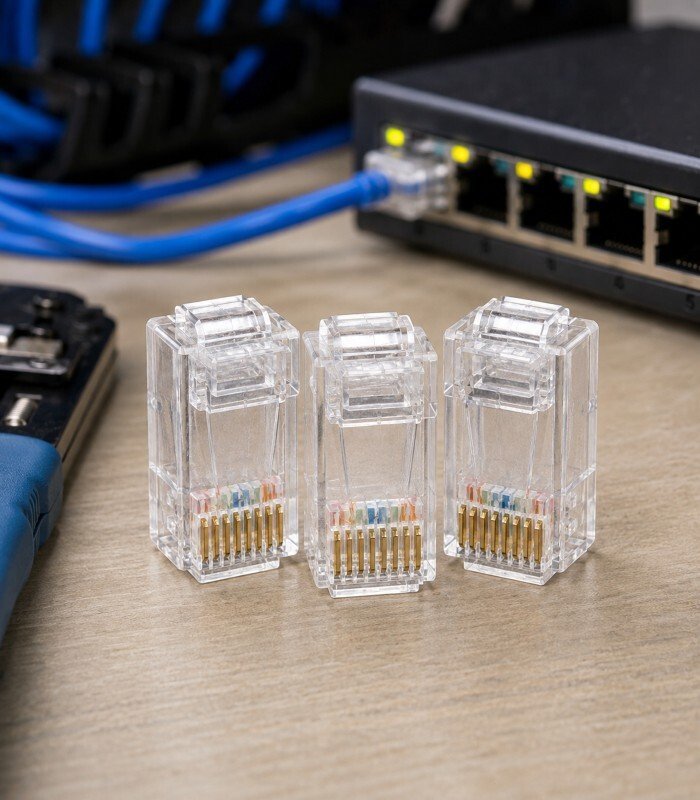

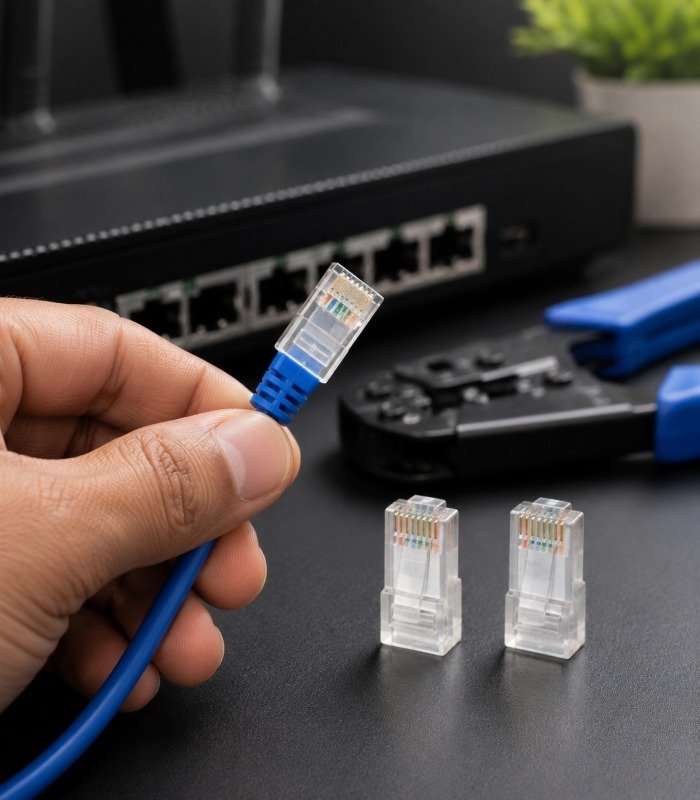

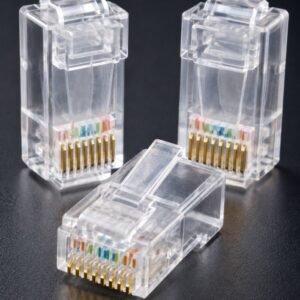

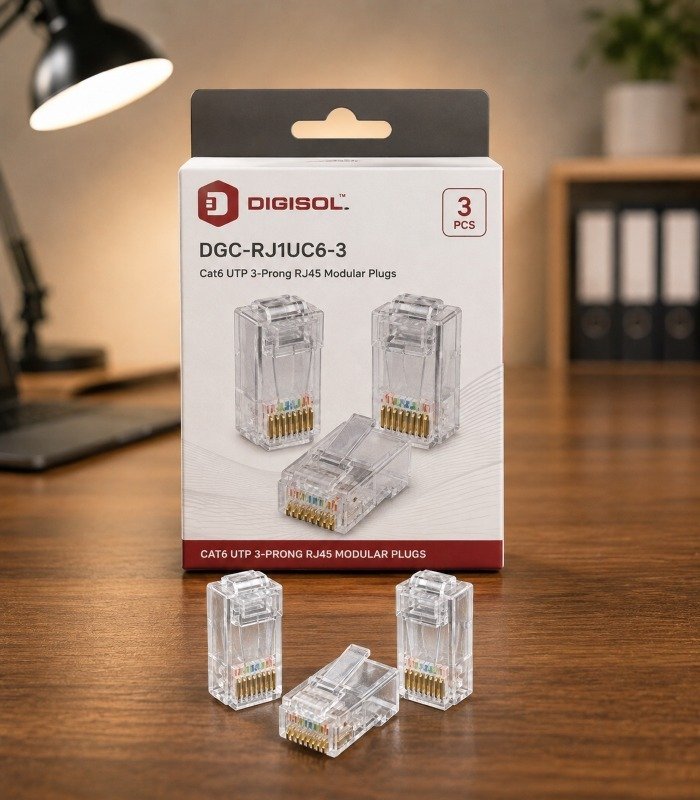

Digisol DGC-RJ1UC6-3 – Cat6 UTP 3-Prong RJ45 Modular Plugs (Pack of 3)
- Category 6 rated for Gigabit Ethernet, suitable for solid & stranded UTP cables
- 3-Prong design ensures accurate conductor alignment and reliable terminations
- Gold-flash plating (3 µ”) on contacts for corrosion resistance and signal integrity
- Polycarbonate UL94V-0 housing with transparent boot for easy wire insertion
- Wide operating temperature from –40 °C to +125 °C for harsh environments
₹550.00
