| 4G Category | LTE CAT.4 |
| 4G/3G Standards | FDD LTE,TDD-LTE,WCDMA |
| 4G Mobile Bands | 4G FDD LTE:B1/B3/B5/B7/B8/B20/B28/; 4G TDD-LTE:B38/B40/B41; 3G WCDMA:B1/B5/B8 |
| Max 4G Speed | DL:150Mbps; UL:50Mbps |
| Wi-Fi Standards | 802.11b/g/n |
| Wi-Fi Frequency | 2.4GHz |
| Wi-Fi Speed | 2.4GHz:300Mbps |
| Interface | 1 × 10/100Mbps LAN/WAN Port 1 × 2FF SIM Card Slot (Mini SIM Card) |
| Button | WPS/Reset |
| Antennas | Internal 4G/3G Antennas; Internal Wi-Fi Antennas |
| LED Indicators | Power; Wi-Fi; LAN/WAN; Internet; 4G/3G Signal strength (4 Bars) |
| Dimension | 166.0mm x 120.2mm x 40.2mm |
| Weight | About 425g |
| Color | White |
| Power Supply | DC12V/1A |
| Power Consumption | <10W |
| Connection Mode | Automatic Mode, Cable Broadband Mode, Wireless Broadband Mode |
| WAN Type | 4G/3G, Wired and Wireless |
| 4G/3G Features | Auto-APN; Auto dial-up; SMS (Send/Receive/Delete); Phonebook; Data limited; PIN Management |
| Wi-Fi Functions | Broadcast and Hide Wi-Fi name; Guest network |
| Wi-Fi Security | WEP,WPA-PSK, WPA2-PSK, WPA/WPA2 |
| Software features | Local/remote management DHCP (DHCP Server and Client) Virtual Server (UPnP/DMZ/Port Forwarding/Port Filtering/Port Mapping) Firewall (Mac/IP address filter, Wi-Fi Black/Whilte list) Upgrade firmware from local or OTA IPV4 support |
| Operating Temperature | Operating Temperature: -10 °C to +65 °C Storage Temperature: -20 °C to +85 °C |
| Operating Humidity | 5% ~ 95% |
| Contents | 1 x 4G LTE Router 1 x Ethernet cable 1 x Power adapter 1 x Quick Installation Guide |
Uncategorized

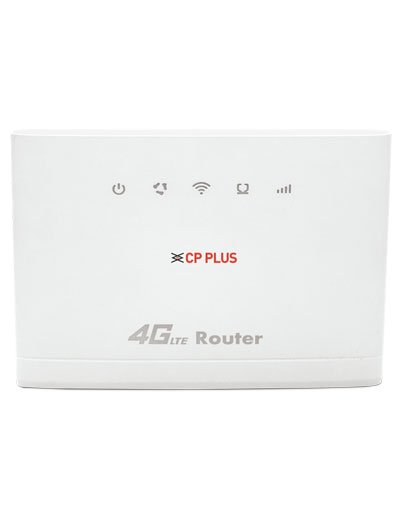

CP-XR-DN211-S
- Compatible with WCDMA, FDD-LTE, TDD-LTE Default 802.11b/g/n
- LTE: B1/3/5/7/8/20/38/40/41 WCDMA: B1/5/8
- Support Wi-Fi 2.4G, Wi-Fi 2×2 MIMO, 802.11 b/g/n
- Support Internal antenna
- Support Reset, WPS
Based on 0 reviews
