| Standard | Compatible with FDD-LTE, TDD-LTE, WCDMA |
| Frequency | LTE: B1/3/5/8/38/39/40/41 ; WCDMA: B1/5/8 |
| Wi-Fi | 2.4GHz, 802.11 b/g/n/ax 286Mbps |
| Wi-Fi User | 8 Users |
| Wi-Fi Mode | Station mode |
| 4G Category | LTE CAT 4 |
| Max 4G Speed | FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL) 21/5.76Mbps |
| SMS | Support |
| IPv4/v6 | Support |
| Data Statistics | Support |
| SIM Lock | Support |
| HTTP & DMZ | Support |
| LED | System/Wi-Fi Indication LED, LTE/Internet Status Interface Status LED, ETH/Signal Strength LED |
| Antenna | External |
| Ethernet | 1LAN, 10BaseT/100Base/ automatic adaptive port |
| Antenna gain | 2.4 GHz: 4.09dBi |
| Reset Button | Pinhole |
| ESD | Contact ±8KV, Air ±10KV |
| Feature | Specification |
| Power Voltage | DC12V/800mA |
| Power Consumption | <10W |
| Color | White |
| Dimension | 150mm x 101mm x 35mm (antenna folded) / 150mm x 101mm x 40mm (antenna unfolded) |
| Weight | 200g (approx.) |
| Wi-Fi Security | OPEN & WPA-PSK & WPA2-PSK |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -20° C to +85° C |
| Humidity | 5%~ 95% |
Uncategorized

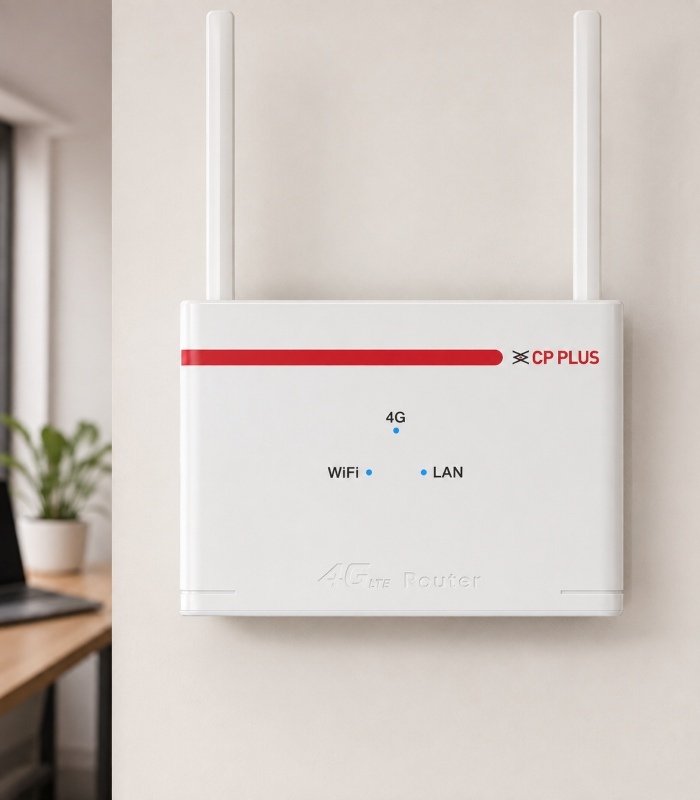

CP-XR-DE21-S-V2
- Compatible with FDD-LTE, TDD-LTE, WCDMA
- Support Wi-Fi 2.4GHz
- Support External antenna
- Support Reset, WPS Button
- Support Wi-Fi 6
