Description:
Within 48 hours Installation Available
Free Delivery on Complete Camera Sets
1-Year Onsite Service Support
1-Year Product Warranty
10-Day Replacement Guarantee
Easy Return & Replacement Policy
We also offer a wide range of CCTV cameras including:
Bullet & Dome Cameras
Night Vision & Wireless Models
DVR/NVR Solutions
Ensure your property is secure with trusted professionals.
📞 Call us today for a free quote and consultation.
| Specification | Details |
|---|---|
| Image Sensor | 1/3” |
| Minimum Illumination | 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Effective Pixels | 2880 (H) × 1620 (V) |
| Angle Adjustment | Pan: 0°–360° ; Tilt: 0°–78° ; Rotation: 0°–360° |
| Shutter Speed | PAL: 1/25 s–1/100,000 s ; NTSC: 1/30 s–1/100,000 s |
| White Balance | Auto / Manual |
| Lens Type | Fixed-focal |
| Max. Aperture | F2.0 |
| Lens Mount | M12 |
| Close Focus Distance | 1.4 m |
| DORI Distance | 3.6 mm: Detect 79.4 m, Observe 31.8 m, Recognize 15.9 m, Identify 7.9 m |
| Gain Control (AGC) | Auto |
| Lens | 3.6 mm Fixed Lens |
| Angle of View | H: 74° ; V: 41° ; D: 89° |
| S/N Ratio | >55 dB |
| Back Light Compensation | BLC / DWDR |
| Video Output | CVI/TVI/AHD/CVBS via one BNC port |
| Resolution | 5M (2880 × 1620), 4M (2560 × 1440), 1080p (1920 × 1080) |
| Frame Rate | CVI: PAL: 5M@25 fps, 5M@12.5 fps, 4M@25 fps, 1080p@25 fps NTSC: 5M@25 fps, 5M@10 fps, 4M@30 fps, 1080p@30 fps AHD: PAL: 4M@25 fps ; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps ; NTSC: 4M@30 fps |
| Noise Reduction | 2D DNR |
| Day/Night | Auto (ICR) / Color / B/W |
| IR Control | Auto / Manual |
| IR | IR Range of 30 m |
| Iris Control | Fixed |
| IR Mode | Smart IR |
| Power Source | 12 VDC |
| Power Consumption | Max 2.2 W (12 VDC, IR on) |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Storage Humidity | <95% RH, non-condensing |
| Dimension | 85.0 mm × 77.1 mm |
| Weight | 0.11 kg |
About This Item

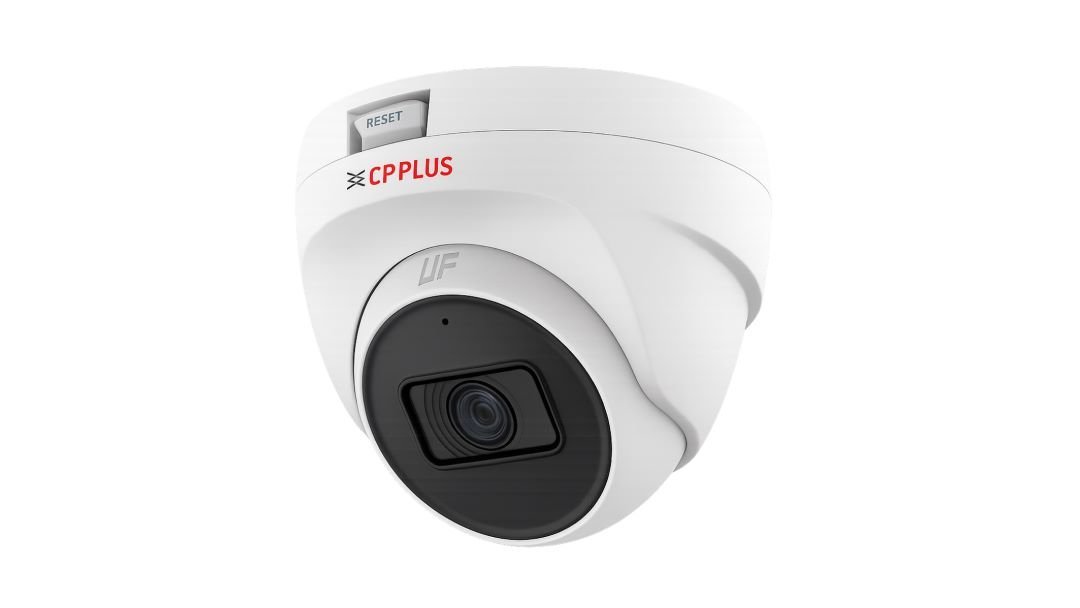

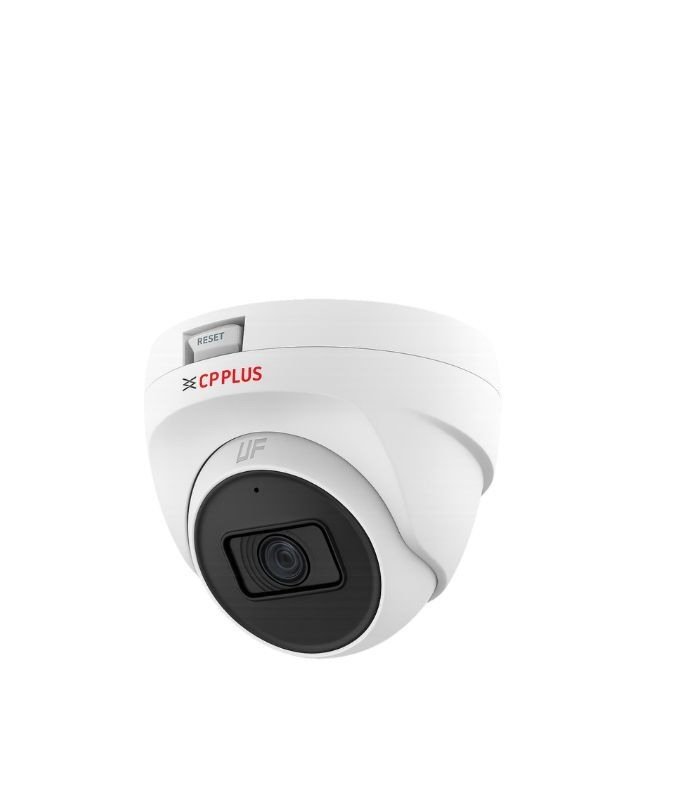

- 5MP ULTRA HD FULL-COLOR DOME CAMERA – 1/2.8″ 5MP CMOS sensor (0.91cm) captures 2880×1620 resolution at 25/30fps — delivering premium image quality for high-security indoor and outdoor CCTV applications.
- FULL-COLOR NIGHT VISION 24/7 UP TO 20M – Built-in warm light technology delivers vivid, true-color footage in total darkness up to 20 meters — enabling accurate identification of individuals and vehicles around the clock.
- BUILT-IN MICROPHONE FOR AUDIO RECORDING – Integrated audio capture provides synchronized audio-visual recording — essential evidence for retail security, office surveillance, and commercial CCTV systems.
- IP67 WEATHERPROOF DOME HOUSING – IP67-certified enclosure ensures complete dust and water protection for reliable performance in exposed outdoor and semi-outdoor CCTV installations.
- UNIVERSAL CVI/CVBS/AHD/TVI COMPATIBILITY – Single BNC cable carries all four major video formats for seamless integration with any analog or hybrid DVR system — no infrastructure changes needed.
- DWDR + 2D-DNR + AWB + AGC + BLC + HLC – Comprehensive image enhancement delivers superior noise reduction and exposure accuracy in high-contrast surveillance scenes like entrances and parking areas.
Frequently Asked Questions (FAQs)
1. What resolution does this camera provide?
The camera records in 5MP Ultra HD (2880×1620) resolution, delivering highly detailed and sharp surveillance footage.
2. Does this camera capture color footage at night?
Yes, the Full-Color Night Vision feature provides vivid color video up to 20 meters even in complete darkness.
3. Does the camera support audio recording?
Yes, the camera includes a built-in microphone for synchronized audio and video recording.
4. Is this camera suitable for outdoor installation?
Yes, the IP67 weatherproof dome housing protects against dust, rain, and harsh environmental conditions.
5. Which DVR systems are compatible with this camera?
The camera supports CVI, CVBS, AHD, and TVI formats, ensuring seamless compatibility with most DVR systems.
6. How does the camera maintain image quality in different lighting conditions?
Features such as DWDR, 2D-DNR, AWB, AGC, BLC, and HLC help optimize exposure, reduce noise, and improve image clarity.
7. Can this camera be used across different regions of Bihar?
Yes, it is suitable for homes, offices, retail stores, educational institutions, and commercial properties across Patna, Tirhut, Magadh, Munger, Bhagalpur, Purnea, Kosi, Saran, and Darbhanga Divisions.
8. What makes this camera a smart choice for businesses across Bihar?
Whether installed in a retail outlet in Patna, an office in Muzaffarpur, a warehouse in Bhagalpur, or a commercial complex in Darbhanga, this 5MP camera provides detailed video, audio recording, and reliable full-color monitoring to help strengthen security and operational oversight.
