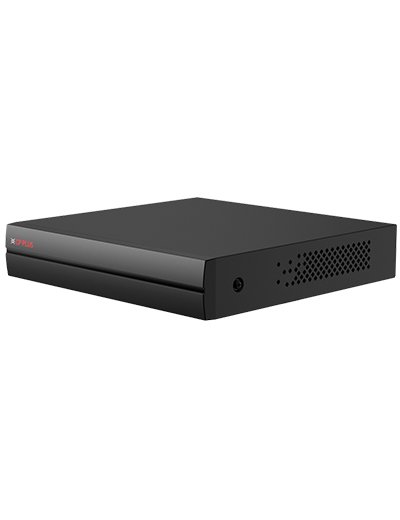

CP-UVR-1601L1N-4KI3-V2

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled

1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30fps

Support (share the same audio input with the first channel)

1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable

Gender; Age group; Glasses; Expressions; Face mask; Beard

Main stream: 4K@(1fps-10fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@ (1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps– 15fps); D1/CIF@(1 fps– 25/30fps)

4 Channels (up to 12 face images/s each channel)

1-channel RCA ,16-channel BNC (Coaxial Audio)

1 SATA port, up to 8TB capacity for each disk. The maximum HDD capacity varies with environment temperature.

Face detection; Face recognition; Perimeter protection

Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection)

1 HDMI, 1 VGA, 1 RS485, 2 USB Ports( (1 front USB 2.0 port, 2 rear USB 3.0 port)

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
