75 inch Smartboard

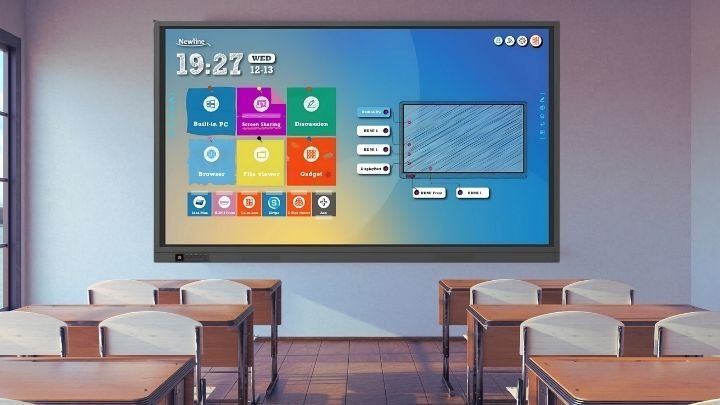

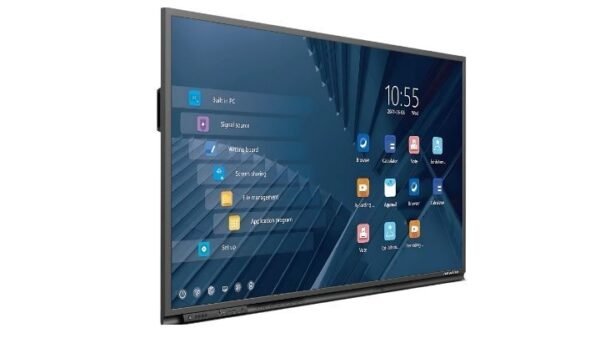

Newline TT7522S – 75″ S Series 4K UHD Interactive Flat Panel Display
- 75″ 4K UHD interactive LED display for immersive learning and collaboration
- 20-point advanced infrared touch with ±1mm accuracy
- Android 11 OS with 4 GB RAM and 32 GB storage
- Dual 20W stereo speakers for clear, room-filling sound
- Equipped with Wi‑Fi 6, Bluetooth 5.2, and Gigabit Ethernet
- Wide range of ports: USB-C PD 65W, HDMI, DisplayPort, VGA, OPS slot
- Supports wireless casting and external camera input
- Designed for classrooms, boardrooms, and training environments
- VESA wall-mount compatible (stand optional)
₹110,000.00
Compare| Model: | TT7522S |
| Operating System: | Android 11 |
| Sizes: | 75″ |
| Display Technology: | LED |
| Screen Resolution: | 3840 × 2160 (4K UHD) |
| Aspect Ratio: | 16:9 |
| Brightness: | ≥450 cd/m² |
| Contrast Ratio: | 15000:1 (Typical) |
| Touch Support: | Advanced Infrared Multi-Touch (20 points, ±1 mm accuracy, 100 pts/s) |
| Audio Output: | Dual 20 W stereo speakers |
| Connectivity: | Wi‑Fi 5, Wi‑Fi 6, Bluetooth 5.2, Ethernet 1 Gbps |
| Processor & GPU: | Arm Cortex-A55 × 4, Mali-G52MP2 |
| RAM & Storage: | 4 GB RAM / 32 GB ROM |
| Touch Technology: | Anti-Glare + Anti-Fingerprint + Tempered Glass, 32767×32767 resolution, USB interface, ±1 mm accuracy |
| Ports / I/O: | Front Ports: HDMI IN (2.0) ×1, Touch USB 2.0 ×1, USB 3.0 ×2, USB-C PD 65W ×1, Mic-In,Back Inputs: HDMI IN ×2, Touch USB ×1, DisplayPort IN 1.2, VGA, VGA Audio-In,Back Outputs: Audio Line-Out ×1, HDMI OUT (2.0) ×1, S/PDIF Out,Other Ports: USB 2.0 (Android) ×1, USB 2.0 (Public) ×2, RJ45 (LAN In/Out), RS232, OPS Slot, Wi-Fi Module Slot, USB-C (Camera) |
| Camera Support: | YES |
| Wireless Casting: | YES |
| Network Support: | YES |
| Preloaded Software: | EShare casting, built-in K–12 classroom tools |
| Mounting Type: | Wall-mounted (optional mobile stand available) |
| Accessories Included: | Remote, stylus pen, power cable, wall-mount kit |
| Power Consumption: | Max ~ 250 W; Standby < 0.5 W |
| Power Source: | AC 100–240 V, 4.0 A |
| Weight: | 51.5 kg net; 64.5 kg gross |
| Dimensions: | Display: 1650 × 928 mm; Outline: 1735 × 1047 × 112 mm |
| Warranty: | 1 Year Manufacturer Warranty |
| Country of Origin: | India |
