| Model: | TT‑8623S |
| Operating System: | Android 14 |
| Sizes: | 86″ (1895 × 1066 mm active) |
| Display Technology: | Direct LED backlit LCD |
| Screen Resolution: | 3840 × 2160 (4K UHD) |
| Aspect Ratio: | 16:9 |
| Brightness: | 400 nits |
| Contrast Ratio: | 4000:1 |
| Touch Support: | Supports up to 40 IR touch points |
| Audio Output: | 2 × 20 W speakers |
| Connectivity: | 3× HDMI IN, VGA, DisplayPort, LAN In/Out, RS232, Mic In |
| Processor & GPU: | ARM Cortex-A55 (Octa-core), Mali-G52 GPU |
| RAM & Storage: | 8 GB RAM, 64 GB ROM, MicroSD slot |
| Touch Technology: | IR with zero-bonding, 9H anti-glare tempered glass |
| Ports / I/O: | Front: USB-C (65W), HDMI IN ×1, USB-A ×2, USB-B ×1Rear: HDMI IN ×2, HDMI OUT ×1, DP 1.2 ×1, VGA ×1, USB-A ×3, USB-B ×2, RS232, SPDIF, RJ45 In/Out, OPS Slot |
| Camera Support: | Optional 4K AI camera + 8-mic array |
| Wireless Casting: | Built-in: AirPlay, Miracast, Chromecast |
| Network Support: | Dual LAN, Wi-Fi 6, Bluetooth 5.2 |
| Preloaded Software: | Display Management (DMG+), Classroom Tools, Secure Mode |
| Mounting Type: | VESA-compatible, Wall or Mobile Stand |
| Accessories Included: | Stylus ×2, Remote, HDMI Cable, USB Cable, USB-C Cable, Wi-Fi Module |
| Power Consumption: | ≤650 W (typical), ≤0.5 W (standby) |
| Power Source: | AC 100–240 V, 50/60 Hz |
| Weight: | 63 kg |
| Dimensions: | 1981 × 1186 × 111 mm |
| Warranty: | 3 Years limited warranty |
| Country of Origin: | China |
86 inch Smartboard, Digital Smart Board, Home Page

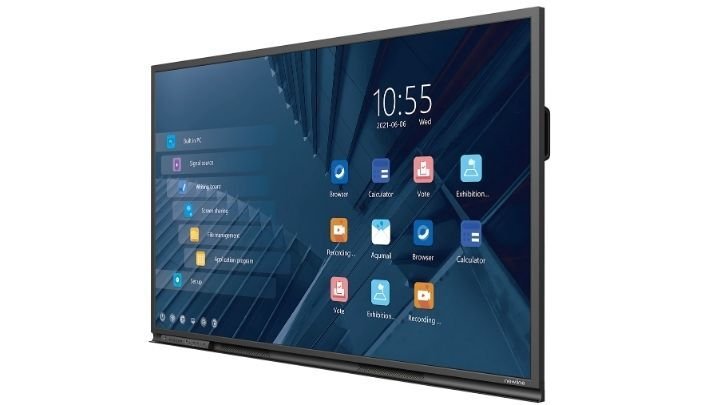

Newline TT-8623S – 86″ S Pro Series 4K UHD Interactive Flat Panel Display
- Massive 86″ 4K UHD LED display with edge-to-edge glass for stunning visuals
- Android 14 with 6 GB RAM and 64 GB storage for smooth multitasking
- 40-point advanced infrared touch with ±1mm precision and responsive writing
- Dual 20W front-facing speakers for loud, immersive classroom audio
- Built-in Wi‑Fi 6, Bluetooth 5.2, and Gigabit LAN for high-speed connectivity
- Equipped with USB-C (65W), HDMI, DisplayPort, VGA, OPS slot, and more
- Supports wireless casting, EShare, and external camera compatibility
- Ideal for large classrooms, smart boardrooms, and collaborative spaces
- Wall-mountable design with optional mobile stand support
₹150,000.00
Based on 0 reviews
Be the first to review “Newline TT-8623S – 86″ S Pro Series 4K UHD Interactive Flat Panel Display”
