| Model Name / No. | DS-D5B86RB/EL |
| Operating System | Android 13.0 |
| Sizes | 86″ |
| Display Technology | DLED-backlit VA panel, zero lamination, anti-glare, 9H hardness |
| Screen Resolution | 3840 × 2160 (4K UHD @ 60 Hz) |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² (typ.) |
| Contrast Ratio | 5,000:1 (Static), 30,000:1 (Dynamic) |
| Touch Support | 40-point IR multi-touch (<5 ms response) |
| Audio Output | 2 × 20 W speakers (200 Hz–20 kHz) |
| Connectivity | Dual 100-Mbps LAN, Wi-Fi AP/Station, Bluetooth 5.2, NFC, Light sensor |
| Processor & GPU | Quad-core Cortex-A55 (1.92 GHz), Mali-G52 MP2 |
| RAM & Storage | 8 GB RAM, 64 GB internal |
| Touch Technology | IR, ≥2 mm touch object, ±1 mm accuracy |
| Ports / I/O | HDMI 2.0 IN ×2, Audio In/Out ×1, TOUCH-USB ×1, RS232 ×1, USB 3.0 ×3, USB 2.0 ×2, USB-C ×1, LAN ×2, SPDIF ×1 |
| Camera Support | External USB webcam supported |
| Wireless Casting | Miracast / AirPlay via Android native |
| Network Support | Dual LAN, Wi-Fi AP/Station, Bluetooth 5.2 |
| Preloaded Software | Hikvision whiteboard, annotation, QR-share, optional OPS slot support |
| Mounting Type | VESA 800 × 600 mm, wall bracket included |
| Accessories Included | Stylus ×2, remote, wall bracket, hook, 1.5 m power cable, manual |
| Power Consumption | Avg 268 W, Max 326 W, Standby ≤0.5 W |
| Power Source | 100–240 V AC, 50/60 Hz |
| Weight | 59.71 kg (net), 79 kg (gross) |
| Dimensions | 1960 × 1165 × 82.5 mm |
| Warranty | 3 years (region dependent) |
| Country of Origin | China |
-36%
86 inch Smartboard

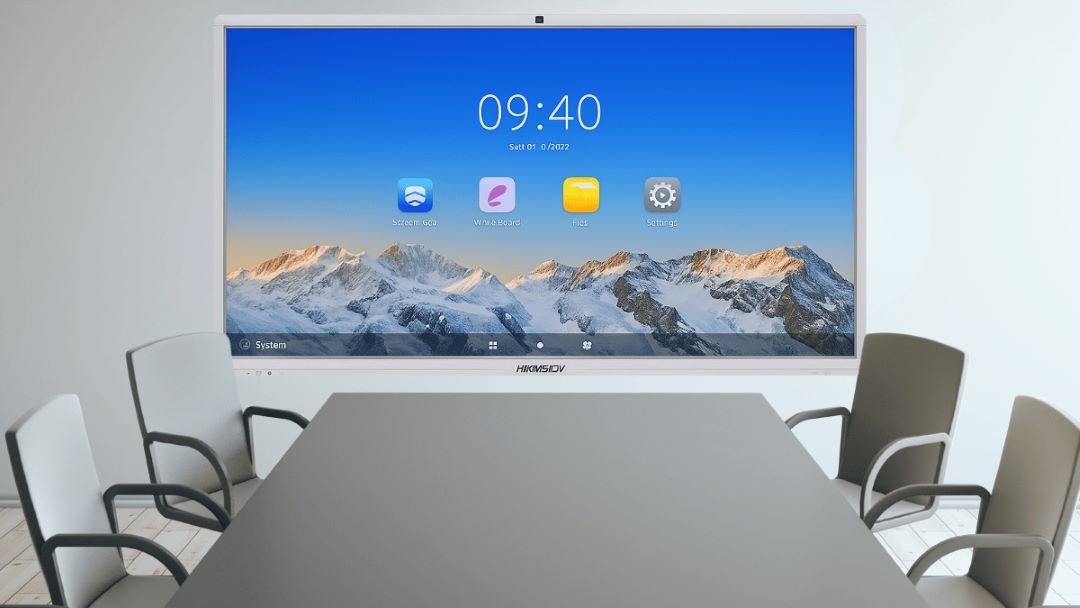

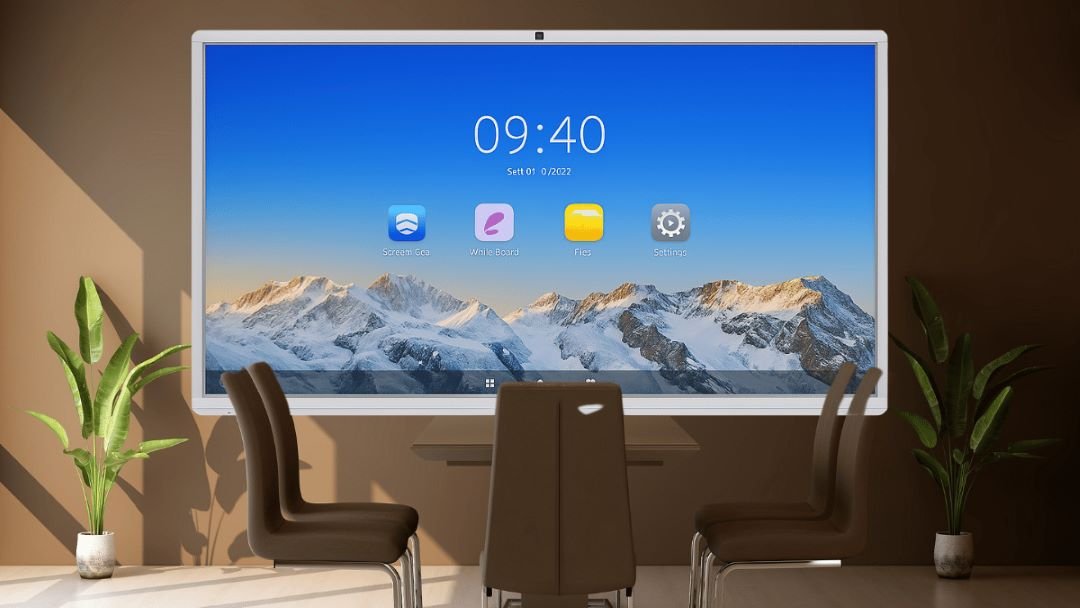

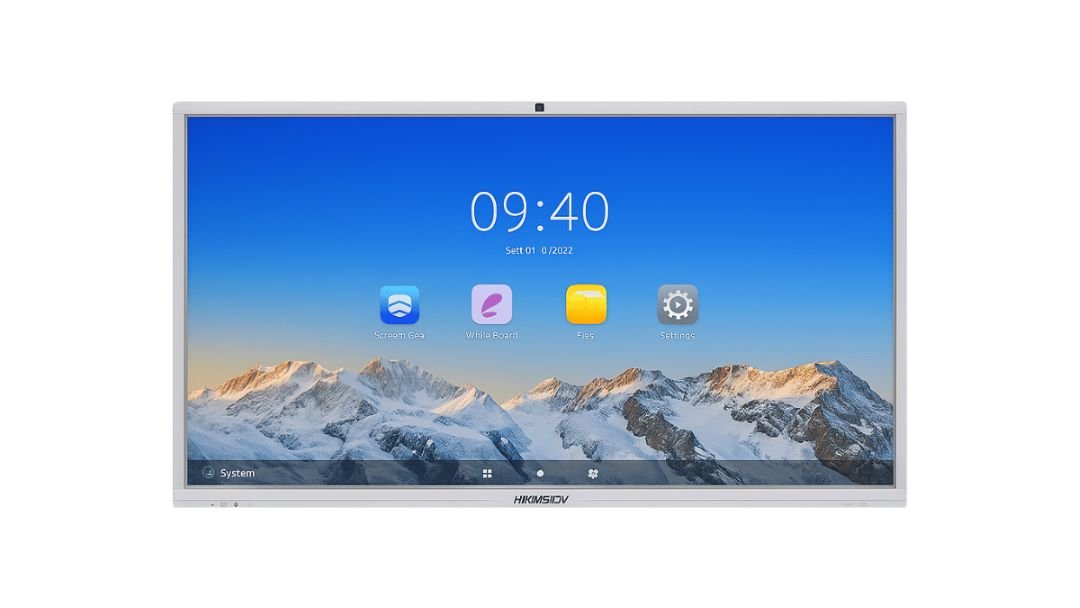

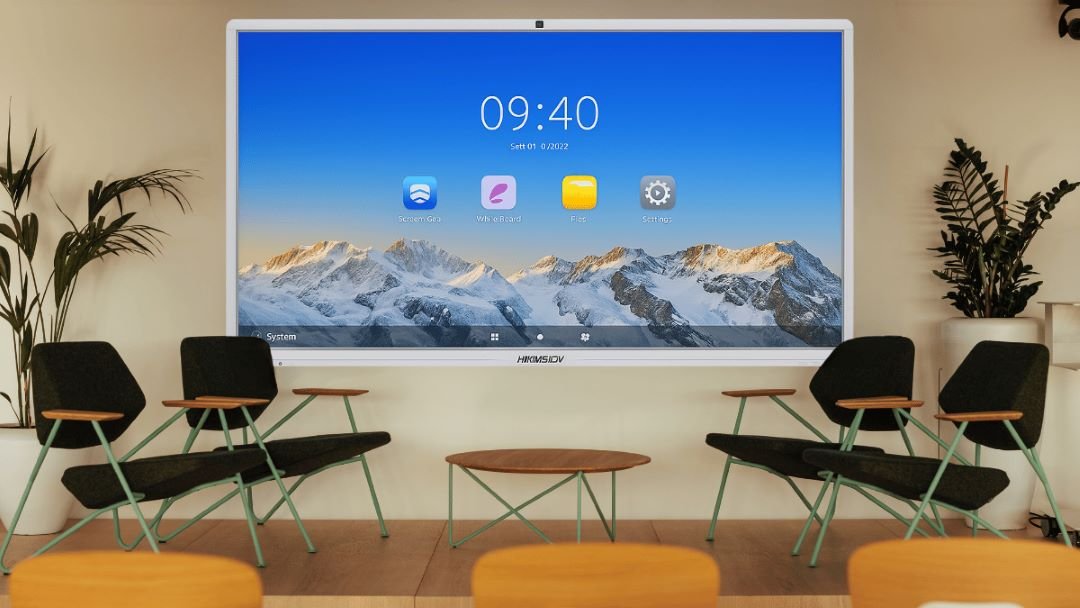

Hikvision DS-D5B86RB/EL – 86″ 4K UHD Interactive Flat Panel Display
- Massive 86″ 4K UHD (3840 × 2160) LED touchscreen with anti-glare finish for stunning clarity
- Android-based OS with intuitive controls tailored for education and business use
- 20-point infrared multi-touch for fluid multi-user collaboration and accurate writing
- Dual 15W built-in speakers for powerful, room-filling audio
- Comprehensive I/O options: HDMI IN/OUT, USB, USB-C, VGA, LAN, RS232, Audio In/Out
- Features include wireless screen sharing, annotation, file management, and whiteboarding
- Built-in OPS slot allows PC module integration for extended performance
- Ideal for lecture halls, training rooms, and enterprise conferencing
- Slim, professional design with wall-mount support and durable build quality
- Covered by Hikvision’s official manufacturer warranty
₹175,000.00 ₹272,000.00
Based on 0 reviews
Be the first to review “Hikvision DS-D5B86RB/EL – 86″ 4K UHD Interactive Flat Panel Display”
