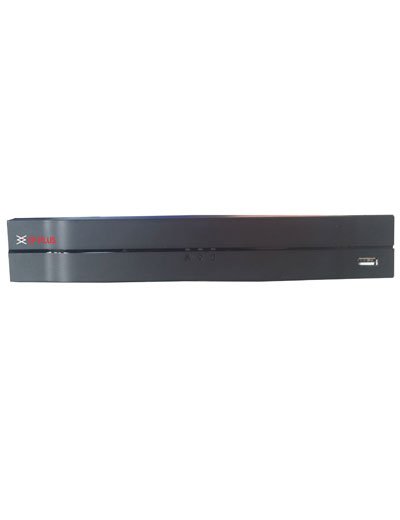

CP-UVR-0401L1-4KI2

CP-UVR-0401L1-4KI2

Compare
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth.
  • Up to 2 channels video stream (analog channel) Perimeter Protection.
  • Instastream/H.265+ dual-stream video compression
  • Up to 2 channels video stream (analog channel) SMD Plus.
  • Support 1 SATA HDDs up to 10TB, 2 USB Ports
  • Up to 2 channels video stream (analog channel) human face recognition.
  • 1 HDMI / 1 VGA simultaneous video output
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro

₹6,500.00

Compare
Processor Embedded processor
Operating System Embedded LINUX
IP Camera Input 4+4 channels, each channel up to 8MP
Two-way Talk Reuse audio in/out, RCA
User Interface GUI
Video Output 1 HDMI, 1 VGA
Video Resolution
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Video Recording
Main stream: All channel 4K(1fps–10fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps); Sub stream: 960H(1fps–15fps); D1/CIF(1fps–25/30fps)
Resolution
4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Video Compression AI Coding/H.265+/H.265/H.264+/H.264
Video Display Split 45661
Video Channel 4 channels, BNC
Audio Compression G.711A, G.711U, PCM
Audio Output 1 channel, RCA
Audio Input 1 channel, RCA
Motion Detection MD Zones: 396 (22 × 18)
Video Loss Supports
Smart Phone iPhone, iPad, Android Phone
Face
Max 8 face pictures/sec processing 2 channels video stream face recognition, only support analog camera
Stranger Mode
Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually.
Hard Disk 1 SATA Ports, Up to 10TB capacity
Database Management
Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries® ions and state can be added to each face picture.
Bit Rate 32 Kbps–6144 Kbps Per Channel
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Database Application
Each database can be applied to video channels independently
Recording Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode USB Device/Network
Playback
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account 128 users
Record Interval
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet 1 RJ-45 port (1000Mbps)
Interface Ports 2 USB Ports (USB 2.0), 1 RS485
Protocols
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant
Power Supply DC 12V/2A
Power Consumption <10W (without HDD)
Working Temp
-10°C to +55°C (+14°F to +131°F), 0–90% RH
Dimension 260 mm × 238 mm × 48 mm
Weight 1.1kg (without HDD)
