| Specification | Details |
| Brand | CP Plus |
| Model Name/No. | CP-EUT-6TGLP-305 |
| Cable Type | 4-Pair UTP (Unshielded Twisted Pair) |
| Category Rating | Cat6 (TIA/EIA-568C.2, ISO/IEC 11801 Class E) |
| Length | 305 m |
| Conductor Material | Solid bare electrolytic-grade copper |
| Nominal Gauge | 23 AWG |
| Insulation | High-density polyethylene (HDPE) |
| Separator | Built-in 4-pair cross filler |
| Outer Sheath Material | Flame-retardant PVC (FR-PVC) |
| Approx. Outer Diameter (OD) | 5.48 mm ± 0.2 mm |
| Characteristic Impedance | 100 Ω ± 15 % |
| Mutual Capacitance | ≤ 5.6 nF/100 m |
| Resistance Unbalance | ≤ 5 % |
| Conductor Resistance | ≤ 93.5 Ω/ km @ 20 °C |
| Frequency Rating | Up to 250 MHz |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –20 °C to +75 °C |
| Rip Cord | Yes |
| Sequential Meter Markings | Every meter |
| Country of Origin | India |
| Warranty | 1 Year Manufacturer Warranty |
Networking Products

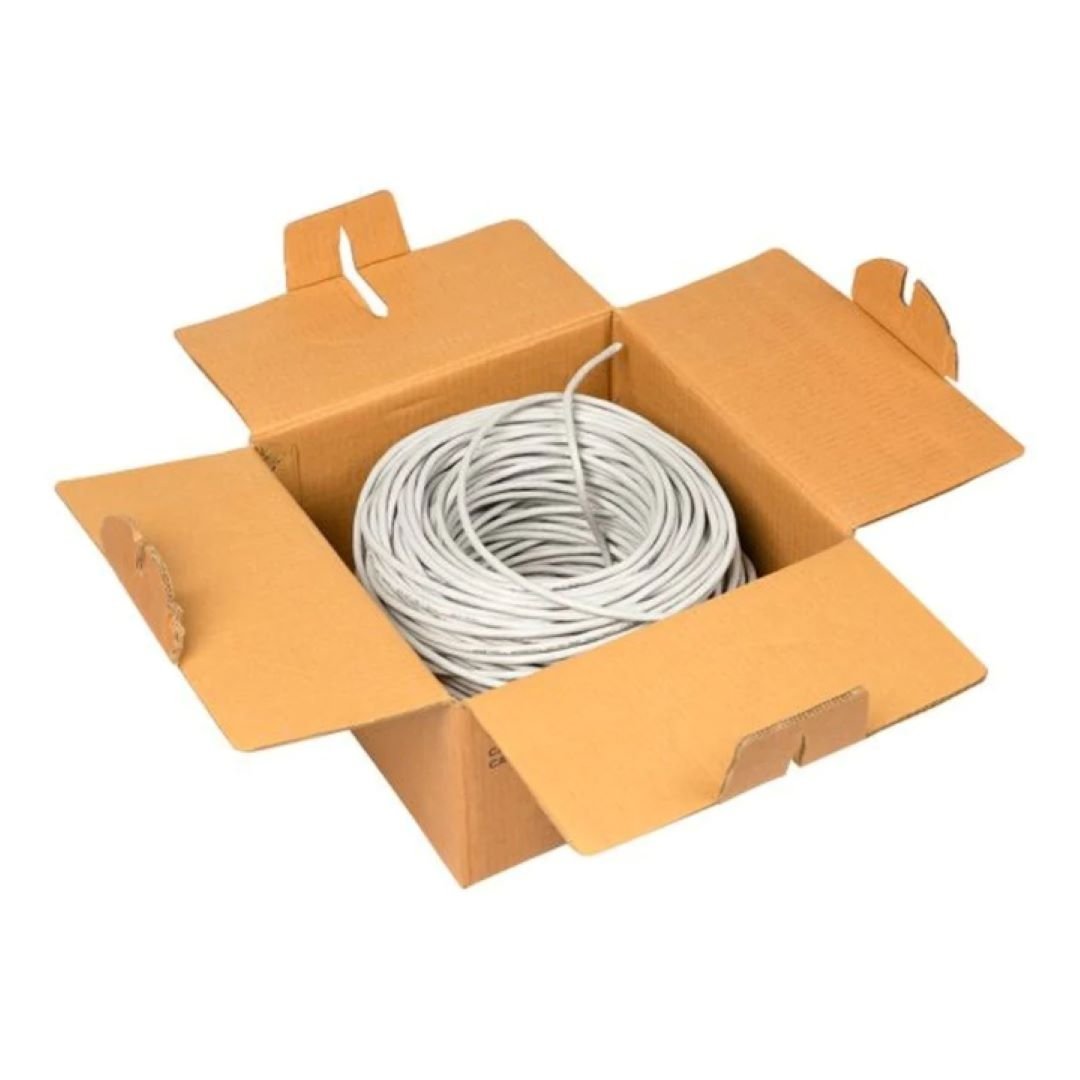

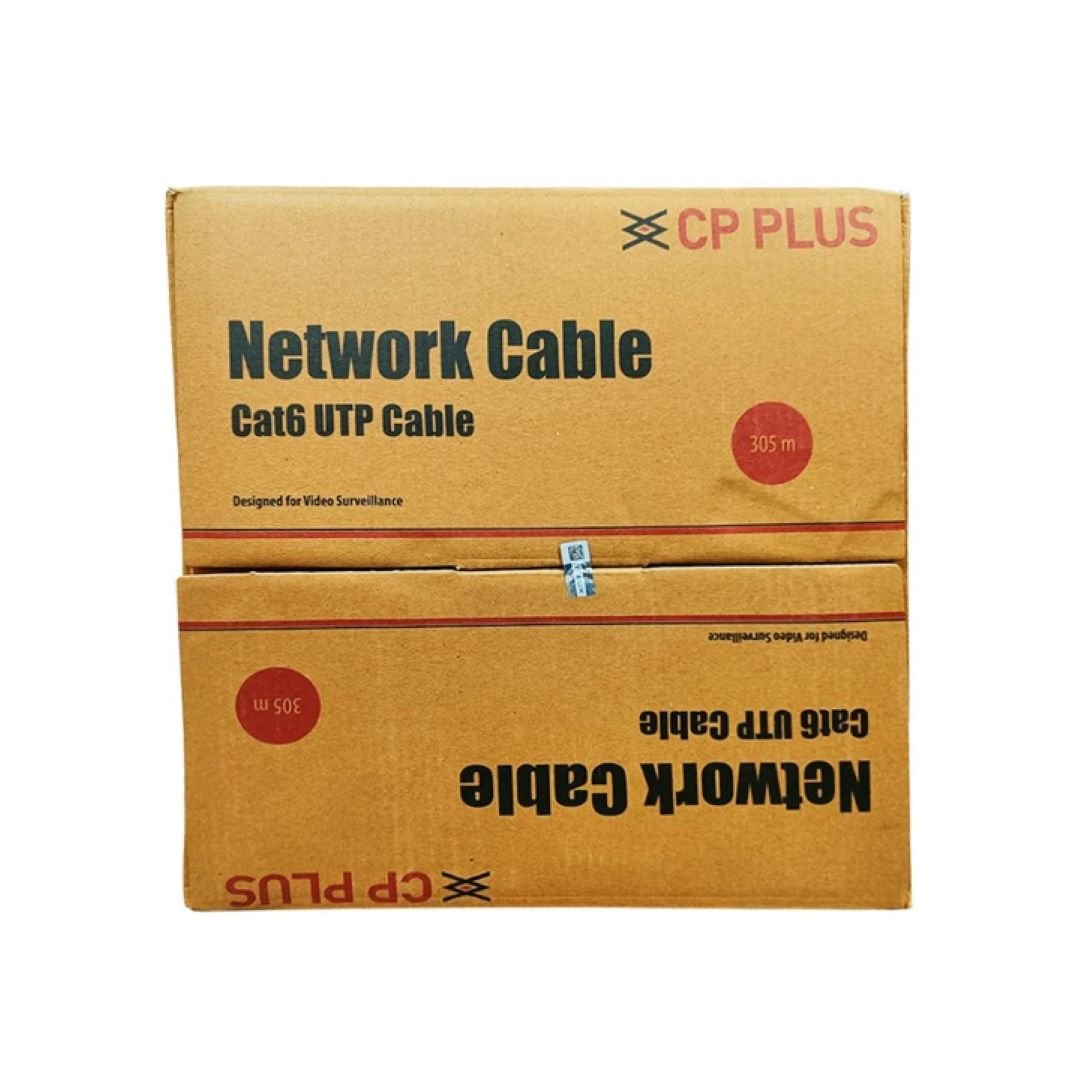

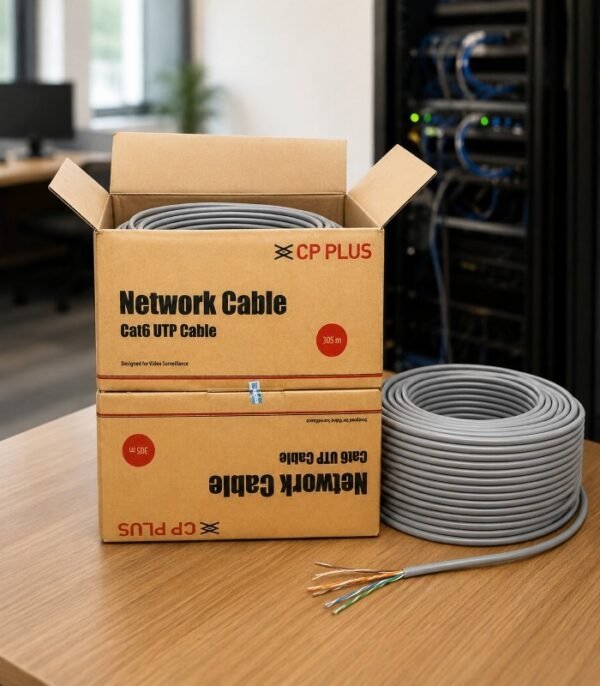

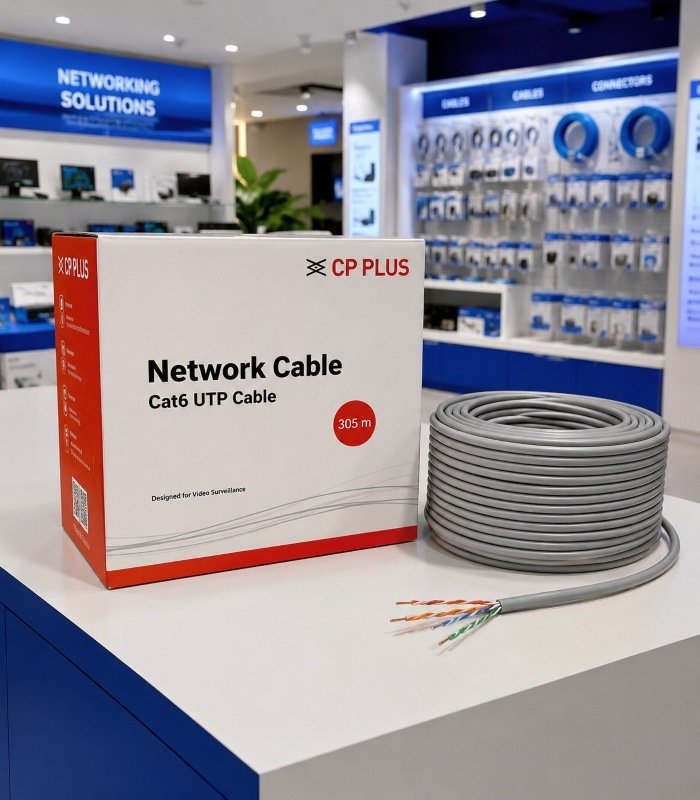

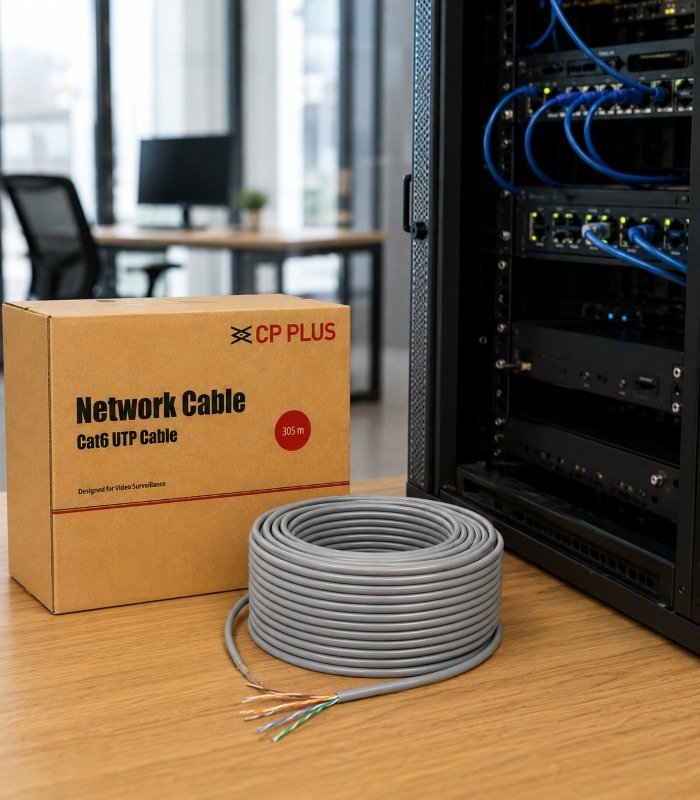

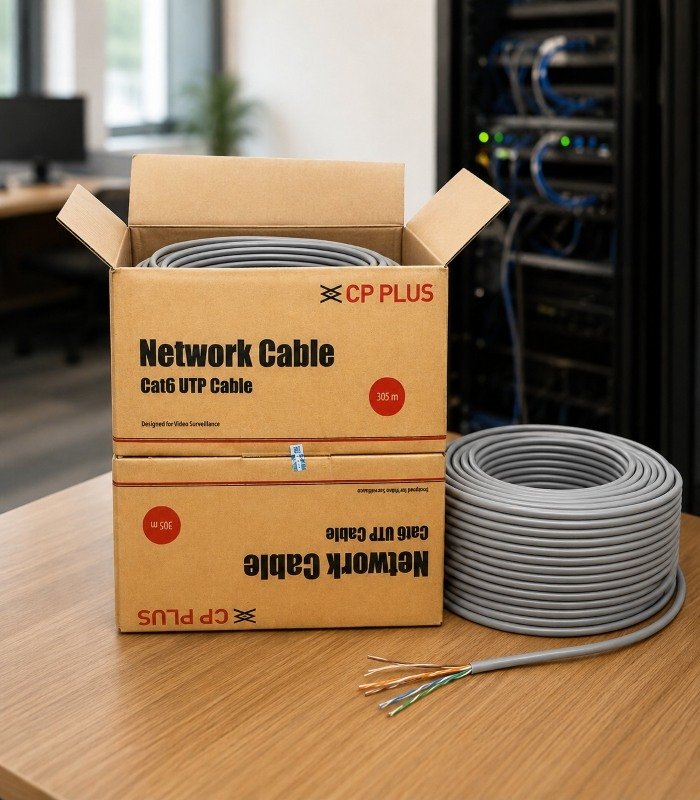

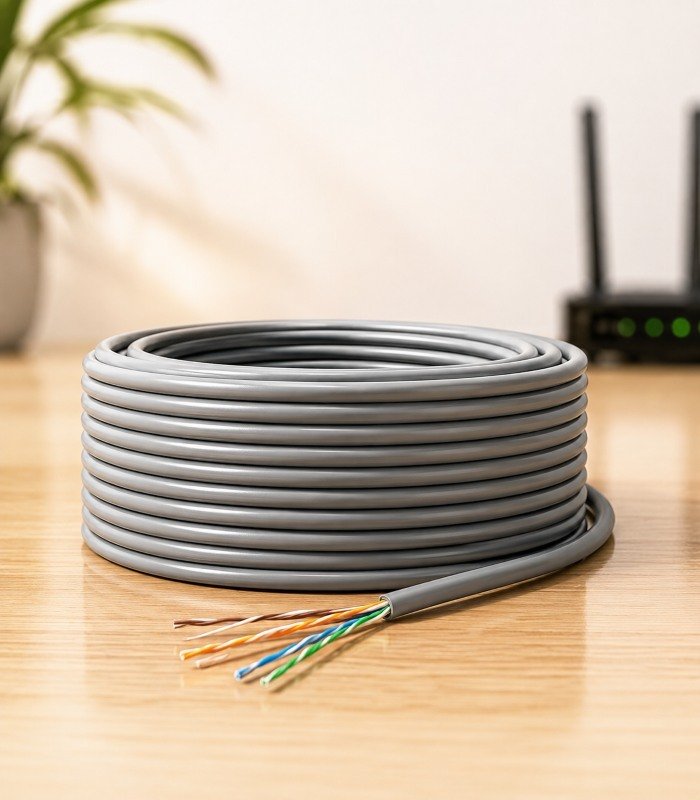

CP Plus CP-EUT-6TGLP-305 – 305 m
- Category 6 UTP cable rated to 250 MHz for Gigabit Ethernet
- 4-pair separator design reduces crosstalk (NEXT) for clear signal
- Solid bare electrolytic-grade copper conductors ensure low resistance
- HDPE insulation and FR-PVC sheath for durability and flame resistance
- Sequential meter markings and rip cord for easy installation
₹5,677.00
Based on 0 reviews
Be the first to review “CP Plus CP-EUT-6TGLP-305 – 305 m”
